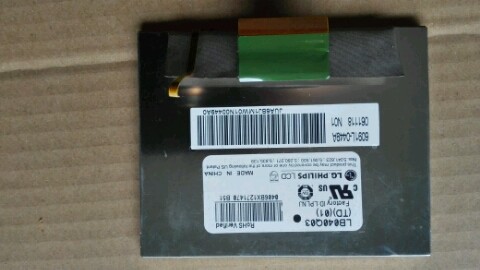

LB040Q02-TD01 LG LCD 4.0" 320(RGB)×240 450 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG.LCD
Model Number :	LB040Q02-TD01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	500PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LB040Q02-TD01 LG LCD 4.0" 320(RGB)×240 450 cd/m² INDUSTRIAL LCD DISPLAY

LG. LCD LB040Q02-TD01 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		LB040Q02-TD01	a-Si TFT-LCD , LCM	LB040Q02 (TD)(01)
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-30 ~ 85 °C	-40 ~ 85 °C

LG. LCD LB040Q02-TD01 Mechanical Features

Screen Size :	4.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	320(RGB)×240, QVGA	RGB Vertical Stripe	0.085×0.255 mm	0.255×0.255 mm [99PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	81.6×61.2 mm	85.4×65.0 mm	98.4×78 mm	10.4±0.3 mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	110/120g (Typ./Max.)	-	Antiglare
Holes & Brackets :	Face mounting holes (4 pcs; on bracket)

LG. LCD LB040Q02-TD01 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	450 cd/m² (Typ.)	TN, Normally White, Transmissive	400:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	65/65/50/65 (Typ.)(CR≥10)	10/30 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	44%	62%	46%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	46%	33%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.20/1.40 (Typ./Max.)(5 points)

LG. LCD LB040Q02-TD01 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	CCFL	Edge light type	20K(Min.)	1 pcs	L shape	-
CCFL Electrical :	Input Voltage		Input Current			Power Consumption
	370/390/510V (Min./Typ./Max.)		3.0/6.0/6.5mA (Min./Typ./Max.)			2.34/2.57W (Typ./Max.)
	Operating Frequency		Startup Voltage
	35/60/80KHz (Min./Typ./Max.)		980/1250V (Max.)(Ta=+25/0℃)
Interface Features :	CCFL Driver State			Physical Type		Interface Position
Interface Features :	No			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	BHSR-02VS-1	1 pcs	2 pins	3.5 mm	BLL-2PINS-HL

LG. LCD LB040Q02-TD01 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)(VCC)		100mA (Typ.)(ICC)			0.45W (Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	CMOS/TTL (1 ch, 6-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	UJU	F100-S40B-C25	1 pcs	40 pins	1.0 mm	DRGB-40P1C6B-160A

LG. LCD LB040Q02-TD01 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	132 pcs / box	-	475×348×341 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
