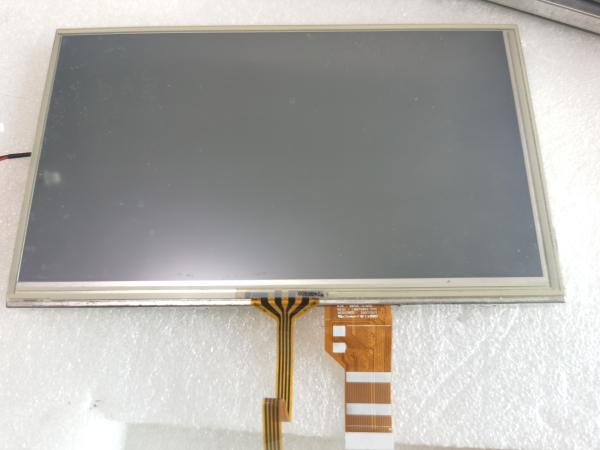

LA070WV1-TD04 LG Display 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG DISPLAY
Model Number :	LA070WV1-TD04
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	500PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LA070WV1-TD04 LG Display 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LA070WV1-TD04 Application Details

Basic Detail :	Manufacturer LA070WV1-TD04Model Name Panel Type a-Si TFT-LCD , LCM Another Name LA070WV1 (TD)(04) Panel Size 7.0 inch Designed For
Maximum Ratings :	OP Temperature -30 ~ 85 °C ST Temperature -40 ~ 85 °C RoHS 1.0G (9.8 m/s²)Vibration Level

LG Display LA070WV1-TD04 Optical Details

Basic Detail :	Luminance 500 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 5/15 (Typ.)(Tr/Td) ms Viewing Angle 70/70/50/60 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.300; Wy:0.315 Support Color 262K (6-bit) Color Temperature 7435K White Variation 1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 65% sRGB 85% coverage Adobe RGB 67% coverage DCI-P3 67% coverage Rec.2020 48% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LA070WV1-TD04 Mechanical Details

Pixel Features :	Number of Pixel 800(RGB)×480, WVGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0651×0.1716 mm Pixel Pitch(W×H) 0.1953×0.1716 mm [134PPI]
Physical Size :	Active Viewing 156.24(W)×82.368(H) mm Overall Dim. 167(W)×93(H) mm Bezel Opening 158.3(W)×84.5(H) mm Overall Depth 6.8/7.5 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 17:9 Shape Style
Fixation :	Without
Other Detail :	Mass 150±10g Surface Antiglare

LG Display LA070WV1-TD04 Interface Detail

Signal Electrical :	Input Current 2.3/31/0.25/0.3mA (Typ.)(DIDD/AIDD/IGH/IGL) Input Voltage 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) Consumption - Signal Interface Parallel RGB (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 0.5 mm 60 pins 1 pcs

LG Display LA070WV1-TD04 Lightting Details

Lamp Features :	Lamp Type WLED Amount 5S4P Position Edge light type Exchange - Lamp Shape 4 strings Lamp Life 10K(Min.) (Hours)
Lamp Electrical :	Input Voltage 13.0/15.0/17.0V (Min./Typ./Max.) Input Current 57±5mA Consumption 1.35/1.71/2.11W (Min./Typ./Max.)
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 0.5 mm 10 pins 1 pcs BLE-10PINS-CCNCCNAAAA
Backlight Driver :	No

LG Display LA070WV1-TD04 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	40 pcs / box	-	475×335×150 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
