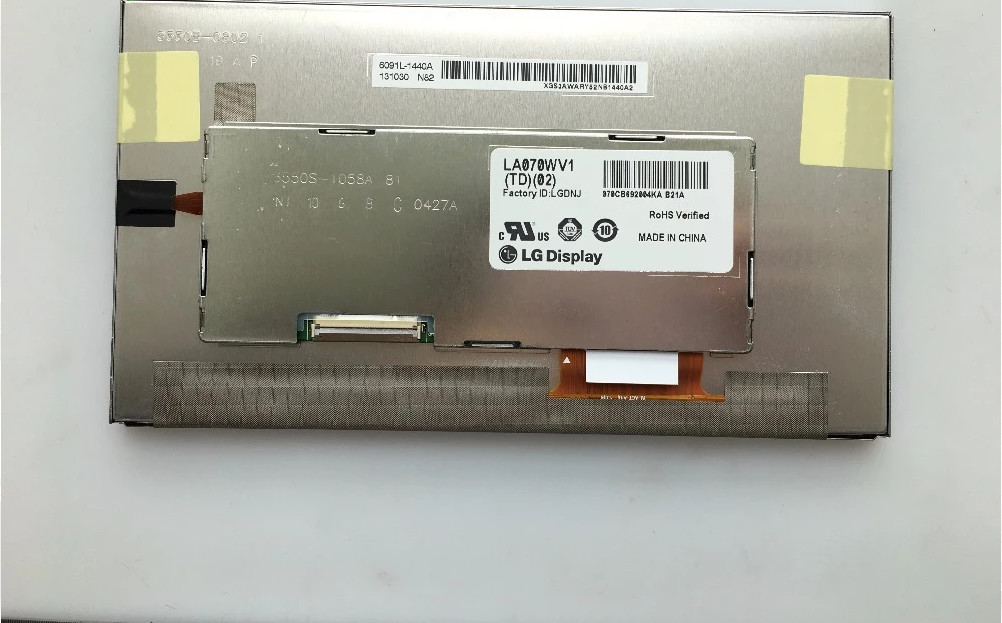

LA070WV1-TD03 LG Display 7.0" 800(RGB)×480 700 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG DISPLAY
Model Number :	LA070WV1-TD03
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	500PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LA070WV1-TD03 LG Display 7.0" 800(RGB)×480 700 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LA070WV1-TD03 Application Details

Basic Info :	Panel Brand		Panel Model	LA070WV1-TD03
	Diagonal Size	7.0"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	LA070WV1 (TD)(03)
Reliability :	Operating Temp.	-30 ~ 70 °C	Storage Temp.	-30 ~ 80 °C
Reliability :	RoHS State		Vibration Rating	2.84G (27.8 m/s²)

LG Display LA070WV1-TD03 Mechanical Details

Pixel Features :	Pixel Format	800(RGB)×480 [WVGA]	Dot Pitch	0.0651×0.1716 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1953×0.1716 mm (H×V) [134PPI]
Mechanical Size :	Display Area	156.24×82.368 mm (H×V)	Bezel Area	158.4×85.1 mm (H×V)
Mechanical Size :	Outline Dim.	168.8×93.5 mm (H×V)	Outline Depth	7.0/10.7 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	17:9 (H:V)	Shape Style
Holes & Brackets :	Without
Other Features :	Weight	210/220g (Typ./Max.)	Surface	Antiglare, Reflection 4.0% (Typ.)

LG Display LA070WV1-TD03 Mechanical Details

Pixel Features :	Pixel Format	800(RGB)×480 [WVGA]	Dot Pitch	0.0651×0.1716 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1953×0.1716 mm (H×V) [134PPI]
Mechanical Size :	Display Area	156.24×82.368 mm (H×V)	Bezel Area	158.4×85.1 mm (H×V)
Mechanical Size :	Outline Dim.	168.8×93.5 mm (H×V)	Outline Depth	7.0/10.7 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	17:9 (H:V)	Shape Style
Holes & Brackets :	Without
Other Features :	Weight	210/220g (Typ./Max.)	Surface	Antiglare, Reflection 4.0% (Typ.)

LG Display LA070WV1-TD03 Backlight Details

Back-light Features:	Lamp Shape	-	Lamp Type	WLED	Life Time	15K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	-	Position	Edge light type
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	12.0V (Typ.)		Current Input	TBD

LG Display LA070WV1-TD03 Interface Details

Signal Systerm :	TTL (1 ch, 6-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	5.0V (Typ.)		Current Input	TBD
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	HRS	FH12K-40S-0.5SH	0.5 mm	40 pins	1 pcs

LG Display LA070WV1-TD03 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	36 pcs / box	-	475×348×182 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
