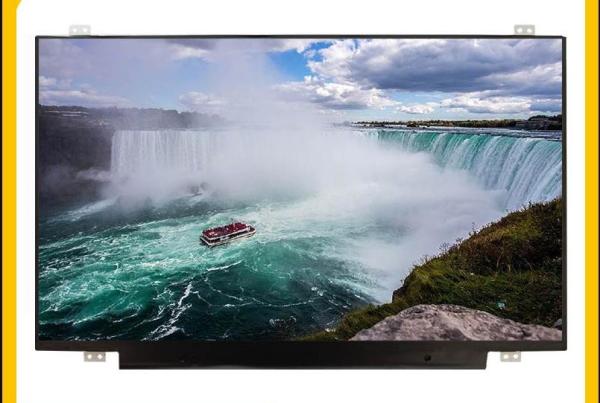

LP156WFC-SPDB LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

LP156WFC-SPDB LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG DISPLAY
Model Number :	LP156WFC-SPDB
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	500PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LP156WFC-SPDB LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LP156WFC-SPDB Application Features

Basic Information :	Manufacturer	Panel Model 9 Compatible	Panel Type	Alias
Basic Information :		LP156WFC-SPDB	a-Si TFT-LCD , LCM	LP156WFC (SP)(DB), LEN40BA
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LP156WFC-SPDB Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	250 (Typ.)	85/85/85/85 (Typ.)(CR≥10)	25 (Typ.)(Tr+Td)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	700 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	16.2M (6-bit + FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	45%	64%	47%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	47%	34%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.25/1.67 (Max.)(5/13 points)

LG Display LP156WFC-SPDB Mechanical Features

Panel Size :	15.6"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1920(RGB)×1080 [FHD]	RGB Vertical Stripe	0.17925×0.17925 [141PPI]	0.05975×0.17925
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	344.16(H) × 193.59(V)	-	350.66(H) × 223.8(V)	3.2 (Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)	Slim (PCBA Flat, T≤3.2mm)
Mounting :	Face mounting holes (8 pcs) on up, down slugs
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	350g (Max.)	-	Antiglare

LG Display LP156WFC-SPDB Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	-	-	15K(Min.)	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Included in panel signal interface
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	5/12/21V (Min./Typ./Max.)		250/256mA (Typ./Max.)			3.0/3.07W (Typ./Max.)

LG Display LP156WFC-SPDB Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		197/218mA (Typ./Max.)			0.65/0.72W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	HRS	KN38B-30S-0.5H	0.5 mm	30 pins	1 pcs	EDP-30P2L-020A

LG Display LP156WFC-SPDB Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	24 pcs / box	-	478×365×328 mm (L×W×H)
