1.Main Information:

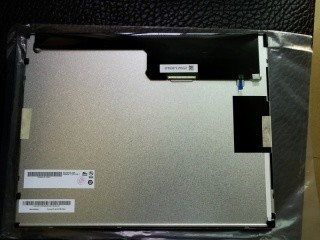

G150XVN01.1 is a 15.0" diagonal a-Si TFT-LCD display panel product
from AU Optronics Corp.with an integral WLED backlight system, With
LED Driver , without touch screen.
It features an operating temperature range of -10 ~ 70°C , a
storage temperature range of -30 ~ 70°C , and the maximal vibration
level of 1.5G (14.7 m/s²).
It's general features are following: WLED Backlight, Life ≥ 50K
hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte .
Based on its features,this model be applied to Industrial etc.
2.AUO G150XVN01.1 Mechanical Features:
| Screen Size | 15.0" |
|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 304.128×228.096 mm | 307.2×231.1 mm | 326.5×253.5 mm | 10.1 (Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
|---|
| 950g (Max.) | - | Antiglare, Hard coating (3H) |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
|---|
3.AUO G150XVN01.1 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| 300 cd/m² (Typ.) | MVA, Normally Black, Transmissive | 1500:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 20/15 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
|---|
| 7274K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.300; Y:0.325 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 71% | 92% | 72% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.33 (Max.)(5 points) |
|---|
4.AUO G150XVN01.1 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|
| WLED | Edge light type | 50K(Typ.) | - | - | - |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
|---|
| With LED Driver | Included in panel signal interface | - |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption |
|---|
| 12.0±1.2V | 1.1/1.3A (Typ./Max.) |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD,
A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours
