1. Main Information:

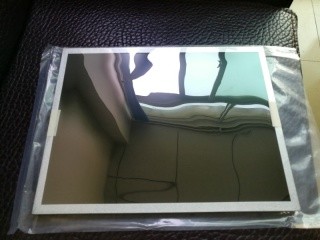

The G185HAN01.1 is a 18.5 inch diagonal a-Si TFT-LCD display panel
product from AU Optronics Corp.with an integral WLED backlight
system, With LED Driver , without touch screen. It features an
operating temperature range of -20 ~ 70°C , a storage temperature
range of -25 ~ 70°C , and the maximal vibration level of 1.5G (14.7
m/s²).
It's general features are following: sRGB, WLED Backlight, Life ≥
50K hours, With LED Driver, Upside I/F, Matte . Based on its
features,this model be applied to Industrial, Medical Imaging etc.
2. AUO G185HAN01.1 Optical Details:
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | Symmetry | Response Speed | 10/10 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance | Chromaticity | Wx:0.299; Wy:0.315 | Support Color | 16.7M (8-bit) |
|---|
| Color Temperature | 7502K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 99% coverage |
|---|
| Adobe RGB | 76% coverage | DCI-P3 | 76% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3. AUO G185HAN01.1 Mechanical Details:
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.071×0.213 mm | Pixel Pitch(W×H) | 0.213×0.213 mm [119PPI] |
| Physical Size : | Active Viewing | 409.86(W)×230.4(H) mm | Overall Dim. | 430.4(W)×254.6(H) mm |
|---|
| Bezel Opening | 412.56(W)×233.64(H) mm | Overall Depth | 12.0±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | 16:9 | Shape Style | - |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
|---|
| Other Detail : | Mass | 1.20Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
|---|
4. AUO G185HAN01.1 Lightting Details:
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|
| Exchange | - | Amount | - | Life | 50K(Typ.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
|---|
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
|---|
| E&T | 3808K-F05N-12R | 1 pcs | 1.25 mm | 5 pins | |
| Backlight Driver | With LED Driver |
|---|
| Driver Electrical | Input Current | 1.6A (Typ.) | Input Voltage | 12.0±1.2V |
|---|
| Consumption | 19.2/23.04W (Typ./Max.) |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
