    19 Inch 1280*1024 Wide Temperature a-Si TFT-LCD G190ETN01.2 For Industrial

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G190ETN01.2
    Certification : ISO9001
    Price : 70USD
    Payment Terms : T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
    Supply Ability : 1000PCS
    Delivery Time : 1 DAY
    • Product Details
    • Company Profile

    19 Inch 1280*1024 Wide Temperature a-Si TFT-LCD G190ETN01.2 For Industrial

    1. Main Information

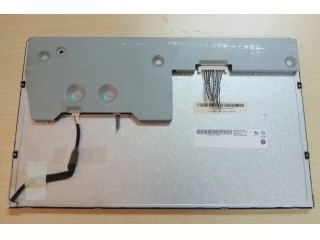

    AU Optronics Corp.G190ETN01.2 is a 19.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).

    It's general features are following: Wide Temperature, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, Matte . Based on its features,this model be applied to Industrial etc


    2. AUO G190ETN01.2 Mechanical Features:

    Panel Size :19 Inch
    Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
    1280(RGB)×1024, SXGARGB Vertical Stripe0.098×0.294 mm0.294×0.294 mm [86PPI]
    Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
    376.32×301.056 mm379.72×304.46 mm396×324 mm15.68 (Max.) mm
    Outline Features :Form StyleAspect RatioOrientationShape Style
    Flat Rectangle5:4 (W : H)Landscape type-
    Fixation :Side mounting holes (4-M3) on left, right bezel
    Other Features :Panel CoverWeightSurface
    -1.80Kgs (Typ.)Antiglare, Hard coating (3H)

    3. AUO G190ETN01.2 Optical Features:

    Basic InformationBrightnessOperating ModeContrast Ratio
    350 cd/m² (Typ.)TN, Normally White, Transmissive1000:1 (Typ.) (Transmissive)
    Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
    85/85/80/80 (Typ.)(CR≥10)-3/7 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
    6485K16.7M (6-bit + Hi-FRC)X:0.313; Y:0.329
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    72%92%71%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    74%54%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Luminance Variation :

    1.25/1.33 (Typ./Max.)(9 points)


    4. AUO G190ETN01.2 Backlight Features:

    Backlight Features:TypePositionShapeAmountLife(Hours)Replacement
    WLEDEdge light type (Bottom side)4 strings4 strings70K(Typ.)-
    WLED Electrical :Current InputVoltage InputConsumption
    50mA (Typ.)36.0/38.4/43.2V (Min./Typ./Max.)7.68W (Typ.)
    Interface Features :PositionTypeWLED Driver
    ConnectorWith LED Driver
    Interface DetailBrandModelAmountPin PitchPinsPin Assignment
    SM08B-GHH-TB1 pcs8 pins
    Driver Electrical :Current InputVoltage InputConsumption
    1.0/1.2A (Typ./Max.)10.8/12.0/13.4V (Min./Typ./Max.)

    5. FAQ:

    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.


    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
