1.Main Information:

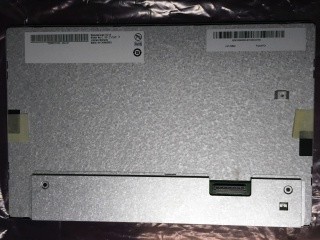

AU Optronics Corp. G101EVN01.2 is a 10.1 inch diagonal a-Si TFT-LCD
display panel product, with an integral WLED backlight system, With
LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a
storage temperature range of -30 ~ 80°C .
It's general features are following: WLED Backlight, Life ≥ 50K
hours, With LED Driver, Reverse I/F, 6/8 bit .
Based on its features, this model be applied to Industrial etc.
2.AUO G101EVN01.2 Mechanical Details:
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.0565×0.1695 mm (H×V) |
|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1695×0.1695 mm (H×V) [149PPI] |
| Mechanical Size : | Display Area | 216.96×135.6 mm (H×V) | Bezel Area | 220.36×139.1 mm (H×V) |
|---|
| Outline Dim. | 227.91×148 mm (H×V) | Outline Depth | 8.34 (Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio | 16:10 (H:V) | Shape Style | - |
| Holes & Brackets : | Without |
|---|
| Other Features : | Weight | - | Surface | Hard coating, Reflection 1.5% (Typ.) |
|---|
3.AUO G101EVN01.2 Optical Details:
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | MVA, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
| Color Performance | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
|---|
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 66% coverage |
|---|
| Adobe RGB | 49% coverage | DCI-P3 | 49% coverage |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.AUO G101EVN01.2 Backlight Details:
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|
| Replacement | - | Amount | - | Position | Edge light type |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
|---|
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 480mA (Max.) |
|---|
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD,
A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
