14 Inch Reverse I/F TFT LCD G140HAN01.0 WLED Backlight Life ≥ 50K hours

Ask Lasest Price
Brand Name :	AUO
Model Number :	G140HAN01.0
Certification :	ISO9001
Price :	50USD
Payment Terms :	T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :	1000PCS
Delivery Time :	1 DAY

Add to Cart

Product Details
Company Profile

14 Inch Reverse I/F TFT LCD G140HAN01.0 WLED Backlight Life ≥ 50K hours

1.Main Information:

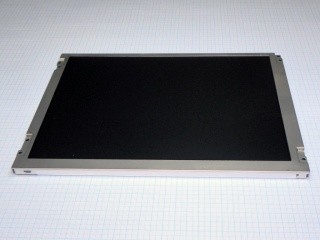

AU Optronics Corp. G140HAN01.0 is a 14.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).

It's general features are the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, Glossy , eDP1.2. Based on its features, this model be applied to Industrial etc.

2.AUO G140HAN01.0 Mechanical Features:

Screen Size :	14 Inch
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.054×0.161 mm	0.161×0.161 mm [157PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	309.14×173.89 mm	-	319×190.76 mm	4.9/8.3 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	-
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	TBD	-	Glare (Haze 0%), Hard coating (3H)
Holes & Brackets :	Without

3.AUO G140HAN01.0 Optical Features:

Basic Information :	Luminance	Work Mode	Contrast Ratio
	500 cd/m² (Typ.)	AHVA, Normally Black, Transmissive	800:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	15/10 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
White Uniformity :	1.33 (Max.)(5 points)

4.AUO G140HAN01.0 Backlight Features:

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	50K(Min.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in panel signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	5.0/12.0/21.0V (Min./Typ./Max.)		462mA (Typ.)			5.54/6.1W (Typ./Max.)

5.FAQ:

Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.

Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
