1.Main Information:

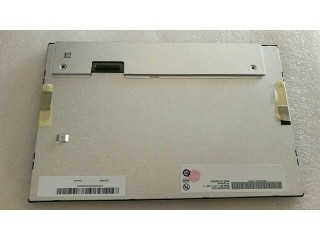

AU Optronics Corp.G101EVN01.3 is a 10.1 inch diagonal a-Si TFT-LCD
display panel product, with an integral WLED backlight system, With
LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a
storage temperature range of -30 ~ 80°C .
It's general features are following: WLED Backlight, Life ≥ 50K
hours, With LED Driver, Reverse I/F, 6/8 bit .
Based on its features,this model be applied to Industrial etc.
2.AUO G101EVN01.3 Optical Details:
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 8-bit) |
|---|
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 66% coverage |
|---|
| Adobe RGB | 49% coverage | DCI-P3 | 49% coverage |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.AUO G101EVN01.3 Mechanical Details:
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.0565×0.1695 mm | Pixel Pitch(W×H) | 0.1695×0.1695 mm [149PPI] |
| Physical Size : | Active Viewing | 216.96(W)×135.6(H) mm | Overall Dim. | 227.91(W)×148(H) mm |
|---|
| Bezel Opening | 220.36(W)×139.1(H) mm | Overall Depth | 8.34 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | 16:10 | Shape Style | - |
| Fixation : | Without |
|---|
| Other Detail | Mass | 350g (Max.) | Surface | Hard coating, Reflection 1.5% (Typ.) |
|---|
4.AUO G101EVN01.3 Lightting Details:
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|
| Exchange | - | Amount | - | Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface |
|---|
| Backlight Driver : | With LED Driver |
|---|
| Driver Electrical : | Input Current | 300/480mA (Typ./Max.) | Input Voltage | 12.0±1.2V |
|---|
| Consumption | 3.6/5.76W (Typ./Max.) |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD,
A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
