1.Main Information:

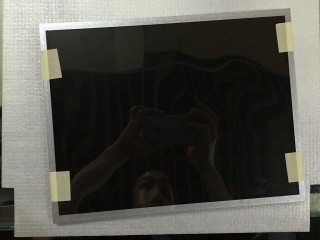

The G150XTN01.1 is a 15.0 inch diagonal a-Si TFT-LCD display panel
product from AU Optronics Corp. with an integral WLED backlight
system, without touch screen.
It features an operating temperature range of -20 ~ 70°C . It's
general features are following: Lamp Repaceable, WLED Backlight,
Life ≥ 50K hours, Matte .
Based on its features,this model be applied to Industrial etc.
According to the information this model mass production on Q4,
2013, Now this model is discontinued.
2.AUO G150XTN01.1 Mechanical Features:
| Screen Size : | 15 Inch |
|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 1024(2)×768(2), XGA | RGBW Rectangle | 0.1485×0.1485 mm | 0.297×0.297 mm [85PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 304.128×228.096 mm | 310.18×234.40 mm | 326.5×253.5 mm | - |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 | Landscape type | - |
| Other Spec | Mass | Panel Cover | Surface Treatment |
|---|
| - | - | Antiglare, Hard coating (3H) |
3.AUO G150XTN01.1 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| - | 80/80/60/80 (Typ.)(CR≥10) | 5.7/2.3 (Typ.)(Tr/Td) (ms) |
| Dispaly Color | Color Temperature: | Support Color | Color Coordinate |
|---|
| 6485K | 16.2M (6-bit + FRC) | X:0.313; Y:0.329 |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) |
|---|
4.AUO G150XTN01.1 Interface Features:
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
|---|
| 3.3V (Typ.) | - | - |
| Interface Features : | Signal Type | Physical Type | Interface Position |
|---|
| LVDS (1 ch, 8-bit) | Connector | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|
| STM | MSB240420E | 1 pcs | 20 pins | 1.25 mm |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD,
A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
