1.Main Information:

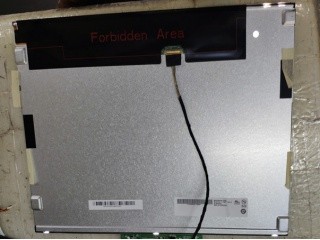

AU Optronics Corp.G150XTN03.4 is a 15.0 inch diagonal a-Si TFT-LCD
display panel product, with an integral WLED backlight system, With
LED Driver , without touch screen.
It features an operating temperature range of 0 ~ 65°C , a storage
temperature range of -20 ~ 65°C , and the maximal vibration level
of 1.5G (14.7 m/s²).
It's general features are ollowing: WLED Backlight, Life ≥ 50K
hours, With LED Driver, 6/8 bit, Matte , eDP1.2.
Based on its features, this model be applied to Industrial etc.
2.AUO G150XTN03.4 Mechanical Features:
| Panel Size | 15 Inch |
|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
|---|
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
|---|
| 304.128×228.096 mm | 313.55×237.25 mm | 326.5×253.5 mm | 10.0 (Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
|---|
| Other Features : | Panel Cover | Weight | Surface |
|---|
| - | 1.02Kgs (Max.) | Antiglare, Hard coating (3H) |
3.AUO G150XTN03.4 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 80/80/70/80 (Typ.)(CR≥10) | - | 5.7/2.3 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
|---|
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 60% | 84% | 63% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 63% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
|---|
4.AUO G150XTN03.4 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|
| WLED | Edge light type (Bottom side) | - | - | 50K(Min.) | No |
| Interface Features : | Position | Type | WLED Driver |
|---|
| - | Included in panel signal interface | With LED Driver |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
|---|
| 0.38A (Typ.) | 12.0±1.2V | 4.5/5.0W (Typ./Max.) |
