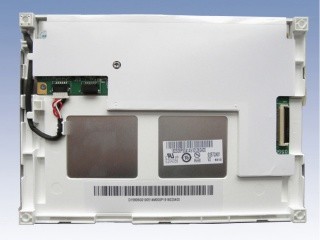

5.7 Inch Hight Brightness LCD Panel G057QN01 V2 With Wide
Temperature And LED Driver
1. Main Information:
The G057QN01 V2 (Alias: G057QN01 V.2) is a 5Inch diagonal a-Si
TFT-LCD display panel product from AU Optronics Corp.
With an integral WLED backlight system, With LED Driver , without
touch screen. It features an operating temperature range of -30 ~
85°C , a storage temperature range of -30 ~ 85°C , and the maximal
vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, Hight
Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With
LED Driver, U/D,L/R Reverse, Matte .
Based on its features, this model be applied to Industrial, Outdoor
High Brightness etc.
2. AUO G057QN01 V2 Mechanical Details:
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.120×0.360 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 118.2(H) × 89.4(V) |
| Outline Dim.(mm) | 144(H) × 104.6(V) | Depth(mm) | 12.3/12.8 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting holes (4-Φ2.6) |
| Other Spec | Weight | 150/165g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
3. AUO G057QN01 V2 Optical Details:
| Basic Information : | Luminance(cd/m²) | 800 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock | Response(ms) | 15/10 (Typ.)(Tr/Td) |
| Color Performance | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4. AUO G057QN01 V2 Interface Details:
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 115/130mA (Typ./Max.) |
| Consumption | 0.46/0.51W (Typ./Max.) |
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STARCONN | 089H33-000100-G2-R | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-010A |
