12.1 Inch Ultra High Brightness TFT LCD Panel G121EAN01.3 With Wide
Temperature
1. Main Information:

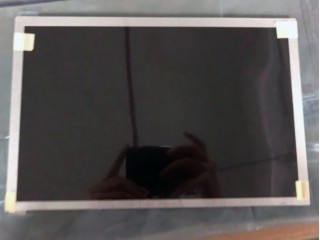

G121EAN01.3 is a 12.1" diagonal a-Si TFT-LCD display panel product
from AU Optronics Corp.With an integral WLED backlight system,
without backlight driver, without touch screen.
It features an operating temperature range of -30 ~ 85°C , a
storage temperature range of -30 ~ 85°C , and the maximal vibration
level of 1.5G (14.7 m/s²).
It's general features are following: sRGB, Wide Temperature, Ultra
High Brightness, WLED Backlight, Life ≥ 70K hours, 6/8 bit, Matte .
Based on its features,this model be applied to Industrial, Outdoor
High Brightness etc.
2. AUO G121EAN01.3 Mechanical Details:
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] |
| Mechanical Size : | Display Area | 261.12×163.2 mm (H×V) | Bezel Area | - |
|---|
| Outline Dim. | 283×185.1 mm (H×V) | Outline Depth | 9.4 (Typ.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio | 16:10 (H:V) | Shape Style | - |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
|---|
| Other Features : | Weight | 490g (Max.) | Surface | Antiglare, Hard coating (3H) |
|---|
3. AUO G121EAN01.3 Optical Details:
| Basic Information : | Brightness | 1500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
|---|
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 99% coverage |
|---|
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance | Outdoor Visibility | Sunlight Readable | Transmittance | - |
|---|
4. AUO G121EAN01.3 Backlight Details:
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 70K(Typ.) (Hours) |
|---|
| Replacement | - | Amount | - | Position | Edge light type |
| Lamp Electrical : | Voltage Input | 30/34V (Typ./Max.) | Current Input | 78mA (Typ.) |
|---|
| Consumption | 9.36/10.6W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
|---|
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
|---|
| JST | SM10B-SHLS-TF(LF)(SN) | 1.0 mm | 10 pins | 1 pcs | BLE-10PINS-NNCAACCAAC |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
