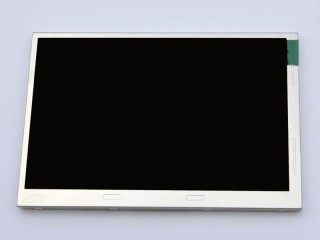

7 Inch Ultra High Brightness Automotive Display Panel G070VTN02.0
With 3G Vibration
1. Main Information:
AU Optronics Corp.G070VTN02. is a 7 Inch diagonal a-Si TFT-LCD
display panel product, with an integral WLED backlight system,
without backlight driver, without touch screen.
It features an operating temperature range of -30 ~ 70°C , a
storage temperature range of -40 ~ 95°C , and the maximal vibration
level of 2.9G (28.4 m/s²).
It's general features are following: Wide Temperature, 3G
Vibration, Ultra High Brightness, WLED Backlight, U/D,L/R Reverse,
Matte .
Based on its features, this model be applied to Industrial, Outdoor
High Brightness, Automotive Display etc.
2. AUO G070VTN02.0 Mechanical Details:
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0635×0.1905 mm (H×V) |
|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1905×0.1905 mm (H×V) [133PPI] |
| Mechanical Size : | Display Area | 152.4×91.44 mm (H×V) | Bezel Area | 155.41×94.66 mm (H×V) |
|---|
| Outline Dim. | 169×103.51 mm (H×V) | Outline Depth | 6.22±0.3 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio | 15:9 (H:V) | Shape Style | - |
| Holes & Brackets : | Without |
|---|
| Other Features : | Weight | 157g (Typ.) | Surface | Antiglare, Hard coating (3H) |
|---|
3. AUO G070VTN02.0 Optical Details:
| Basic Information : | Brightness | 1500 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | - | Response Time | 12/18 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.306; Wy:0.328 | Color Numbers | 262K (6-bit) |
|---|
| Color Temperature | 6880K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 66% | sRGB | 88% coverage |
|---|
| Adobe RGB | 68% coverage | DCI-P3 | 69% coverage |
| Rec.2020 | 49% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance | Outdoor Visibility | Sunlight Readable | Transmittance | - |
|---|
4. AUO G070VTN02.0 Interface Details:
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO |
|---|
| Signal Electrical : | Voltage Input | 3.3/11.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) | Current Input | 11.6/22.2/0.22/0.27mA (Typ.)(IDD/AIDD/IGH/IGL) |
|---|
| Consumption | 290mW (Typ.) |
| Interface Features : | Type | FPC | Position | - | |
|---|
| FPC Detail | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
|---|
| | 0.5 mm | 50 pins | 1 pcs |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
