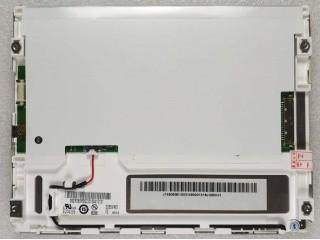

6.5 Inch Hight Brightness TFT Display G065VN01 V2 6/8 Bit Glossy
With WLED Backlight
1. Main Information:
G065VN01 V2 (Alias: G065VN01 V.2) is a 6.5Inch diagonal a-Si
TFT-LCD display panel product from AU Optronics Corp.
With an integral WLED backlight system, With LED Driver , without
touch screen. It features an operating temperature range of -30 ~
80°C , a storage temperature range of -30 ~ 80°C , and the maximal
vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, Hight
Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With
LED Driver, U/D,L/R Reverse, 6/8 bit, Glossy , EcoTR.
Based on its features, this model be applied to Industrial, Outdoor
High Brightness etc.
2. AUO G065VN01 V2 Mechanical Features:
| Screen Size | 6.5 Inch |
|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.069×0.207 mm | 0.207×0.207 mm [122PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 132.48×99.36 mm | 135.9×102.8 mm | 153×118 mm | 10.9±0.3 mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
|---|
| 170g (Typ.) | - | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Holes & Brackets : | Side mounting holes (4-M2); Rear mounting holes (4-M2.5) |
|---|
3. AUO G065VN01 V2 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| 800 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| 6 o'clock | 80/80/70/70 (Typ.)(CR≥10) | 15/10 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
|---|
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 57% | 75% | 59% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 60% | 43% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25 (Max.)(5 points) |
|---|
| Performance | 3D Technology | Outdoor Visibility | Reflectance |
|---|
| - | Sunlight Readable | - |
4. AUO G065VN01 V2 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|
| WLED | Edge light type (Bottom side) | 50K(Min.) | - | - | Replaceable |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
|---|
| With LED Driver | Connector | - |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|
| STM | MS24016RHD | 1 pcs | 6 pins | 1.25 mm | |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption |
|---|
| 9/12/20V (Min./Typ./Max.) | 0.25A (Typ.) |
5. AUO G065VN01 V2 Interface Features:
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
|---|
| 3.3V (Typ.) | 260/300mA (Typ./Max.) | 0.86W (Typ.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
|---|
| LVDS (1 ch, 6/8-bit) | Connector | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|
| STM | MSB24013P20 | 1 pcs | 20 pins | 1.0 mm |
