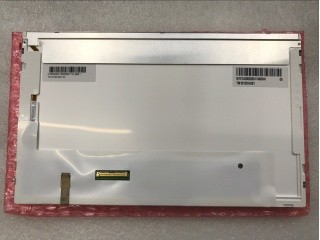

10.1 Inch Automotive Display Panel TM101DDHG01 With LED Driver
1. Main Information:
TM101DDHG01 is a 10.1" diagonal a-Si TFT-LCD display panel product
from Tianma Microelectronics Co., Ltd. with an integral WLED
backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a
storage temperature range of -30 ~ 80°C , and the maximal vibration
level of 1.5G (14.7 m/s²).
It's general features are following: WLED Backlight, With LED
Driver, 6/8 bit, Matte . Based on its features,this model be
applied to Industrial, Automotive Display etc.
2. TIANMA TM101DDHG01 Mechanical Details:
| Pixel Features : | Resolution | 1024(RGB)×600, WSVGA | Dot Pitch(mm) | 0.0725×0.2088 (H×V) |
|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2175×0.2088 (H×V) [117PPI] |
| Mechanical Size : | Active Area(mm) | 222.72(H) × 125.28(V) | Bezel Area(mm) | 225.52(H) × 128.10(V) |
|---|
| Outline Dim.(mm) | 235(H) × 143(V) | Depth(mm) | 4.9/5.4 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
|---|
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
|---|
| Other Spec : | Weight | 202g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
|---|
3. TIANMA TM101DDHG01 Optical Details:
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 80/80/75/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock | Response(ms) | 7/9 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
|---|
| Color Temperature | 6485K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 65% coverage |
|---|
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM101DDHG01 Interface Details:
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 220mA (Typ.) |
|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - |
|---|
| Interface Features : | Position | - | Type | Connector |
|---|
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
|---|
| I-PEX | 20455-040E-12R | 1 pcs | 40 pins | 0.5 mm | LVDS-40P1C8B-020C |
