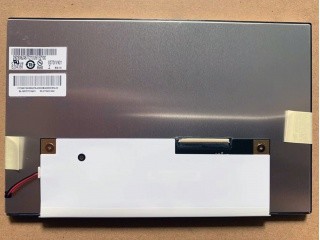

7 Inch Wide Temperature TFT LCD Display G070VW01 V0 Life ≥ 50K
hours Lamp Repaceable
1. Main Information:
The G070VW01 V0 (Alias: G070VW01 V.0, G070VW01.0) is a 7 Inch
diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.
With an integral WLED backlight system, With LED Driver , without
touch screen. It features an operating temperature range of -30 ~
85°C , a storage temperature range of -30 ~ 85°C , and the maximal
vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, Lamp
Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver,
U/D,L/R Reverse, 6/8 bit, Matte , Mass Production: Apr. 2009.
Based on its features, this model be applied to Industrial etc.
2. AUO G070VW01 V0 Mechanical Details:
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0635×0.1905 mm (H×V) |
|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1905×0.1905 mm (H×V) [133PPI] |
| Mechanical Size : | Display Area | 152.4×91.44 mm (H×V) | Bezel Area | 155.2×94.24 mm (H×V) |
|---|
| Outline Dim. | 170×111 mm (H×V) | Outline Depth | 7.5±0.5 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio | 15:9 (H:V) | Shape Style | - |
| Holes & Brackets : | Without |
|---|
| Other Features : | Weight | 165/175g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
|---|
3.AUO G070VW01 V0 Optical Details:
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 750:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | - | Response Time | 20/10 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
|---|
| Color Temperature | 6638K | White Uniformity | 1.30 (Max.)(5 points)
|
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 83% coverage |
|---|
| Adobe RGB | 62% coverage | DCI-P3 | 62% coverage |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.AUO G070VW01 V0 Interface Details:
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - |
|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.24/0.26A (Typ./Max.) |
|---|
| Consumption | 0.8/0.96W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | - | |
|---|
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
|---|
| HRS | DF19LA-20P-1H | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C8B-140A |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD,
A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
