G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10)

15 Inch 1024*768 G150XTN06.0 20 pins Connector 70K Hours With LED Driver

1. Main Information:

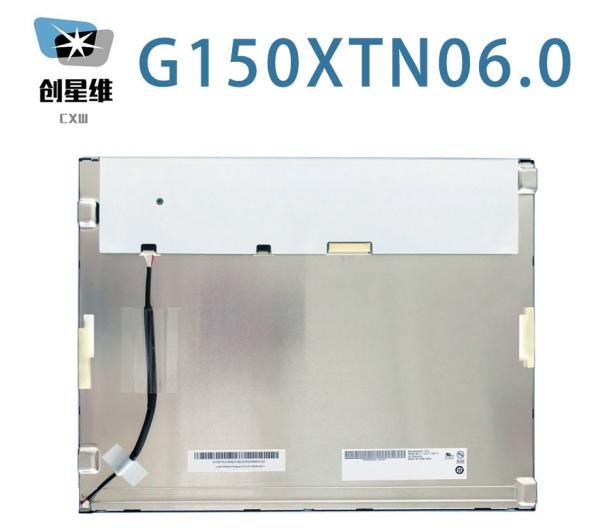

AU Optronics Corp.G150XTN06.0 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).

It's general features are ollowing: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, 6/8 bit, Matte .

Based on its features,this model be applied to Industrial etc.

2. AUO G150XTN06.0 Mechanical Details:

Pixel Features :	Pixel Format	1024(RGB)×768 [XGA]	Dot Pitch	0.099×0.297 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :	Display Area	304.128×228.096 mm (H×V)	Bezel Area	307.4×231.3 mm (H×V)
Mechanical Size :	Outline Dim.	326.5×253.5 mm (H×V)	Outline Depth	12.0±0.5 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style	-
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.00Kgs (Max.)	Surface	Antiglare, Hard coating (3H)

3.AUO G150XTN06.0 Optical Details:

Basic Information :	Brightness	450 cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/70/80 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	-	Response Time	5.7/2.3 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.311; Wy:0.322	Color Numbers	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6658K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	64%	sRGB	85% coverage
	Adobe RGB	66% coverage	DCI-P3	66% coverage
	Rec.2020	47% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4.AUO G150XTN06.0 Backlight Details:

Back-light Features:	Lamp Shape	-	Lamp Type	WLED	Life Time	70K(Typ.) (Hours)
Back-light Features:	Replacement	Replaceable	Amount	-	Position	Edge light type (Bottom side)
Interface Features :	Type	Connector	Position	-	Lamp Driver	With LED Driver
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	E&T	3808K-F05N-12R	1.25 mm	5 pins	1 pcs
Driver Electrical :	Voltage Input	12.0±1.2V		Current Input	0.75A (Typ.)
Driver Electrical :	Consumption	9.0W (Typ.)
