10.4 Inch TFT LCD G104SN03 V5 With LED Driver 180° Reverse For
Industrial
1. Main Information:

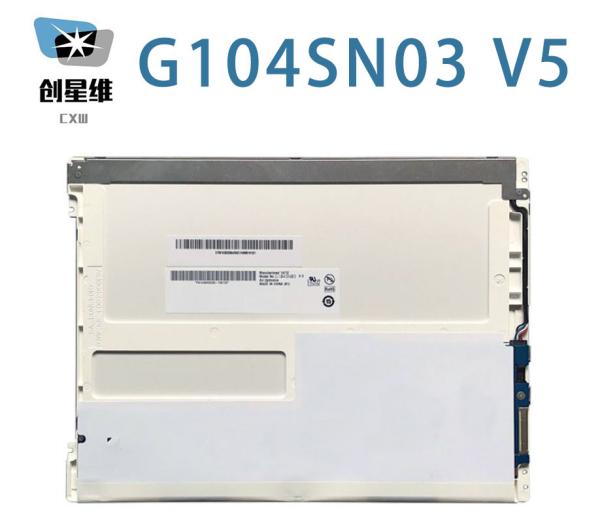

G104SN03 V5 (Alias: G104SN03 V.5) is a 10.4" diagonal a-Si TFT-LCD
display panel product from AU Optronics Corp.
With an integral WLED backlight system, With LED Driver , without
touch screen.
It features an operating temperature range of -20 ~ 70°C , a
storage temperature range of -20 ~ 70°C , and the maximal vibration
level of 1.5G (14.7 m/s²).
It's general features are following: Lamp Repaceable, WLED
Backlight, With LED Driver, 180° Reverse, 6/8 bit, Matte .
Based on its features, this model be applied to Industrial etc.
2. AUO G104SN03 V5 Optical Details:
| Basic Information : | Luminance | 230 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | - | Response Speed | 10/5 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/60/70 (Typ.)(CR=10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
|---|
| Color Temperature | 6638K | White Uniformity | 1.33/1.54 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 69% coverage |
|---|
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.AUO G104SN03 V5 Mechanical Details:
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] |
| Physical Size | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 236(W)×176.9(H) mm |
|---|
| Bezel Opening | 214.8(W)×162.0(H) mm | Overall Depth | 5.7±0.3 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | 4:3 | Shape Style | - |
| Fixation : | Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel |
|---|
| Other Detail : | Mass | 280g (Typ.) | Surface | Antiglare, Hard coating (3H) |
|---|
4.AUO G104SN03 V5 Interface Details:
| Signal Electrical : | Input Current | 320mA (Typ.) | Input Voltage | 3.3V (Typ.) |
|---|
| Consumption | 1.06W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
|---|
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
|---|
| STM | MSB24013P20HA | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C8B-080A |
5.AUO G104SN03 V5 Lightting Details:
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type |
|---|
| Exchange | Replaceable | Amount | 3 strings | Life | 30K(Typ.) (Hours) |
| Lamp Electrical : | Input Current | 25mA (Typ.) | Input Voltage | 26.0/29.2V (Typ./Max.) |
|---|
| Consumption | 1.95W (Typ.) |
| Interface Features : | Position | - | Physical Type | Connector |
|---|
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
|---|
| E&T | 3808K-F05N-02R | 1 pcs | 1.25 mm | 5 pins | |
| Backlight Driver : | With LED Driver |
|---|
| Driver Electrical : | Input Current | 0.2A (Typ.) | Input Voltage | 10.8/12.0/12.6V (Min./Typ./Max.) |
|---|
| Consumption | 2.44W (Typ.) |
