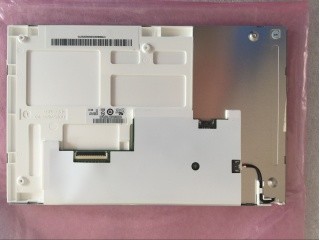

8.5 Inch Wide Temperature TFT LCD Panel G085VW01 V0 With LED Driver
1. Main Information:
The G085VW01 V0 (Alias: G085VW01 V.0) is a 8.5 inch diagonal a-Si
TFT-LCD display panel product from AU Optronics Corp. With an
integral WLED backlight system, With LED Driver , without touch
screen.
It features an operating temperature range of -30 ~ 85°C , a
storage temperature range of -30 ~ 85°C , and the maximal vibration
level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, Lamp
Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180°
Reverse, Matte , Mass production from Jun. 2010. Based on its features,this model be applied to Industrial etc.
2. AUO G085VW01 V0 Optical Features:
| Basic Information | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|
| 300 (Typ.) | 80/80/80/60 (Typ.)(CR≥10) | 20/10 (Typ.)(Tr/Td) |
| Best View on | Display Mode | Contrast Ratio |
| - | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
|---|
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 50% | 70% | 52% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
|---|
3.AUO G085VW01 V0 Mechanical Features:
| Panel Size | 8.5 Inch |
|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
|---|
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.231×0.231 [109PPI] | 0.077×0.231 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
|---|
| 184.8(H) × 110.88(V) | 189.8(H) × 116.0(V) | 210(H) × 134(V) | 10.0±0.5 mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
|---|
| Flat Rectangle | Landscape type | 15:9 (H:V) | - |
| Mounting : | Rear mounting holes (4-Φ1.6) |
|---|
| Other Detail | Weight | Panel Cover | Treatment |
|---|
| 250g (Typ.) | - | Antiglare, Hard coating (3H) |
4.AUO G085VW01 V0 Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|
| WLED | Edge light type | - | - | 50K(Min.) | Replaceable |
| Interface Features : | Position | Backlight Driver | Type |
|---|
| - | With LED Driver | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
|---|
| E&T |
3808K-F05N-02R | 1.25 mm | 5 pins | 1 pcs | |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption |
|---|
| 12.0V (Typ.) | 0.25A (Typ.) | 3W (Typ.) |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD,
A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
