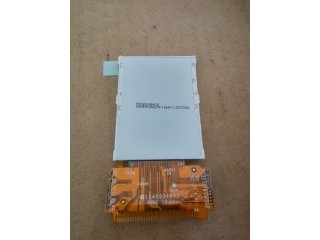

2 Inch TM020HBH03 With 4-wire Resistive Touch CPU 8/16bits 3 in 1
FPC For Mobile Phone
1. Main Information:
TM020HBH03 is a 2.0" diagonal a-Si TFT-LCD display panel product
from Tianma Microelectronics Co., Ltd.with an integral WLED
backlight system, without backlight driver, touchscreen 4-wire
Resistive Touch.
It features an operating temperature range of -20 ~ 60°C , a
storage temperature range of -30 ~ 70°C .
It's general features are following: Portrait type, With Touch,
WLED Backlight , CPU 8/16bits, 3 in 1 FPC.
Based on its features, this model be applied to Mobile Phone etc.
2. TIANMA TM020HBH03 Mechanical Features:
| Screen Size : | 2 Inch |
|---|
| Pixel Features | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 240(RGB)×320, QVGA | RGB Vertical Stripe | 0.042×0.126 mm | 0.126×0.126 mm [201PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 30.24×40.32 mm | - | 35.6×48.2 mm | 3.75 mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 3:4 | Portrait type | - |
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
|---|
| - | - | - | 4-wire Resistive Touch |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
|---|
| 10.0g | - | Clear |
3. TIANMA TM020HBH03 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| 170 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| 9 o'clock | 60/70/70/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
|---|
| 8266K | 65K/262K | X:0.290; Y:0.310 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 55% | 73% | 56% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 55% | 41% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) |
|---|
4. TIANMA TM020HBH03 Interface Features:
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
|---|
| 2.8/(1.8/2.8)V (Typ.)(VCC/IOVCC) | - | 13.902mW (Typ.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
|---|
| CPU | FPC | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|
| | 1 pcs | 36 pins | 0.8 mm |
