5 Inch 640*480 VOIP Phone Panel TM050QDH11 With LED Driver Life ≥
50K hours
1. Main Information:

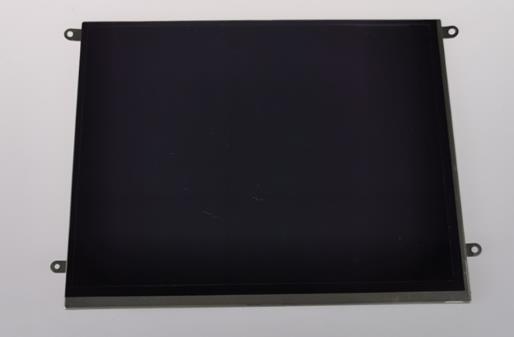

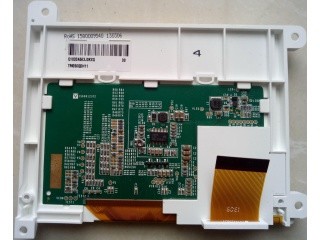

TM050QDH11 is a 5.0" diagonal a-Si TFT-LCD display panel product
from Tianma Microelectronics Co., Ltd.with an integral WLED
backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a
storage temperature range of -20 ~ 80°C . It's general features are
following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Matte
. Based on its features, this model be applied to VOIP Phone etc.
2. TIANMA TM050QDH11 Mechanical Features:
| Screen Size : | 5 Inch |
|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.0529×0.1587 mm | 0.1587×0.1587 mm [160PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 101.568×76.176 mm | - | 117.35×88.43 mm | 7.9/15.0 (Typ./Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
|---|
| 86.0±4.3g | - | Antiglare, Hard coating (3H) |
| Holes & Brackets : | Face mounting holes (4 pcs) on up, down, right slugs |
|---|
3. TIANMA TM050QDH11 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| 12 o'clock | 70/70/60/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
|---|
| 7470K | 262K (6-bit) | X:0.300; Y:0.313 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 50% | 70% | 53% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) |
|---|
4. TIANMA TM050QDH11 Interface Features:
| Signal Electrical | Input Voltage | Input Current | Power Consumption |
|---|
| 3.3V (Typ.) | 130/200mA (Typ./Max.) | 430/660mW (Max.) |
| Voltage for Display Signals : | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD |
|---|
| Interface Features : | Signal Type | Physical Type | Interface Position |
|---|
| Parallel RGB (1 ch, 6-bit) + SPI | FPC | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|
| | 1 pcs | 45 pins | 0.5 mm |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
