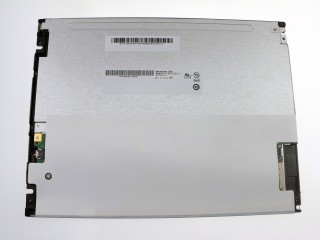

10.4 Inch Wide Temperature TFT LCD Panel G104STN01.0 With LED
Driver
1. Main Information:
AU Optronics Corp.G104STN01.0 is a 10.4 inch diagonal a-Si TFT-LCD
display panel product, with an integral WLED backlight system,
With LED Driver , without touch screen. It features an operating
temperature range of -30 ~ 80°C , a storage temperature range of
-30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, WLED
Backlight, Life ≥ 70K hours, With LED Driver, 180° Reverse, 6/8
bit, Matte .
Based on its features,this model be applied to Industrial etc.
2. AUO G104STN01.0 Mechanical Details:
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.088×0.264 (H×V) |
|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.264×0.264 (H×V) [96PPI] |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 214.8(H) × 162.7(V) |
|---|
| Outline Dim.(mm) | 243(H) × 184(V) | Depth(mm) | 6.5±0.5 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
|---|
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
|---|
| Other Spec | Weight | 365g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
|---|
3.AUO G104STN01.0 Optical Details:
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 80/80/60/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | - | Response(ms) | 10/5 (Typ.)(Tr/Td) |
| Color Performance | White Coordinate | X:0.310; Y:0.330 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
|---|
| Color Temperature | 6638K | White Uniformity | 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 74% coverage |
|---|
| Adobe RGB | 56% coverage | DCI-P3 | 56% coverage |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.AUO G104STN01.0 Backlight Details:
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|
| Replacement | - | Quantity | 7S2P | Life Time | 70K(Typ.) (Hours) |
| Interface Features : | Position | - | Type | Connector |
|---|
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
|---|
| E&T | 3808K-F05N-02R | 1 pcs | 5 pins | 1.25 mm | |
| Backlight Driver : | With LED Driver |
|---|
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.32A (Typ.) |
|---|
| Consumption | 2.88W (Typ.) |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD,
A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
