4.3 Inch G043FTT01.0 4 Wire Resistive TFT LCD Touch Panel 65/65/50/55

Ask Lasest Price
Brand Name :	AUO
Model Number :	G043FTT01.0
Certification :	ISO9001
Price :	40USD
Payment Terms :	T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :	1000PCS
Delivery Time :	1 DAY

Add to Cart

Product Details
Company Profile

4.3 Inch G043FTT01.0 4 Wire Resistive TFT LCD Touch Panel 65/65/50/55

4.3 Inch G043FTT01.0 With 4-wire Resistive Touch TFT LCD Panel 180° Reverse

1. Main Information:

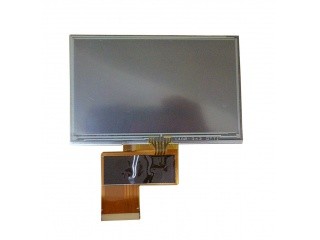

The G043FTT01.0 is a 4.3 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.With an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of 0 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: With Touch, WLED Backlight, 180° Reverse, Matte . Based on its features, this model be applied to Industrial, Handheld & PDA etc. This model mass production on Q4, 2011, Now this model is in production.

2. AUO G043FTT01.0 Mechanical Details:

Pixel Features :	Pixel Format	480(RGB)×272 [WQVGA]	Dot Pitch	0.066×0.198 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.198×0.198 mm (H×V) [128PPI]
Mechanical Size :	Display Area	95.04×53.856 mm (H×V)	Bezel Area	100.8×58.76 mm (H×V)
Mechanical Size :	Outline Dim.	105.5×67.2 mm (H×V)	Outline Depth	4.13 (Typ.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:9 (H:V)	Shape Style	-
Touch Screen :	Touch Points	1 point	TP Signal	-
Touch Screen :	TP Controller	Without touch controller	Touchscreen	4-wire Resistive Touch
Other Features :	Weight	59.0g (Typ.)	Surface	Antiglare (Haze 8%), Hard coating (3H)

3.AUO G043FTT01.0 Optical Details:

Basic Information :	Brightness	400 cd/m² (Typ.)	Contrast Ratio	400:1 (Typ.) (Transmissive)
	Viewing Angle	65/65/50/55 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	15/20 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.320; Wy:0.340	Color Numbers	16.7M (8-bit)
Color Performance :	Color Temperature	6066K	White Uniformity	1.33/1.43 (Typ./Max.)(9 points)

4.AUO G043FTT01.0 Backlight Details:

Back-light Features:	Lamp Shape	1 string	Lamp Type	WLED	Life Time	10K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	9S1P	Position	Edge light type
Lamp Electrical :	Voltage Input	28.8V (Typ.)		Current Input	20/22mA (Typ./Max.)
Lamp Electrical :	Consumption	576/693mW (Typ./Max.)
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	No

5.FAQ:

Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
