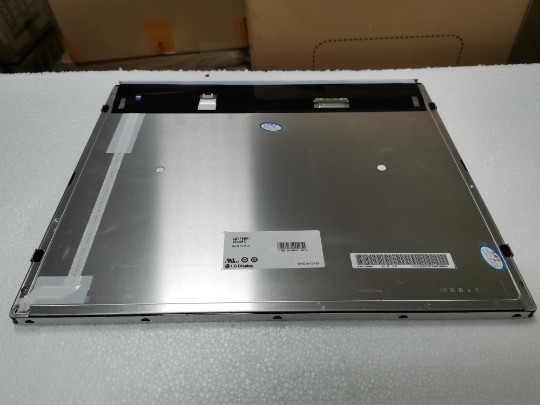

17 Inch Upside I/F 72% NTSC TFT LCD Display LB170E01-SL01 With LED
Driver
1. Main Information:
LB170E01-SL01 (Alias: LB170E01 (SL)(01)) is a 17.0" diagonal a-Si
TFT-LCD display panel product from LG Display Co., Ltd. with an
integral WLED backlight system, With LED Driver , without touch
screen. It features an operating temperature range of -10 ~ 70°C ,
a storage temperature range of -20 ~ 80°C , and the maximal
vibration level of 1.0G (9.8 m/s²).
It's general features are following: WLED Backlight, Life ≥ 50K
hours, With LED Driver, Upside I/F, Matte . Based on its
features,this model be applied to Industrial, Medical Imaging etc.
2. LG Display LB170E01-SL01 Optical Details:
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.338 | Support Color | 16.7M (8-bit) |
|---|
| Color Temperature | 6568K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
|---|
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3. LG Display LB170E01-SL01 Mechanical Details:
| Pixel Features | Number of Pixel | 1280(RGB)×1024 [SXGA] | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] |
| Physical Size : | Active Viewing | 337.92(W)×270.336(H) mm | Overall Dim. | 368(W)×306(H) mm |
|---|
| Bezel Opening | 341.5(W)×274.6(H) mm | Overall Depth | 14.8 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | 5:4 | Shape Style | - |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
|---|
| Other Detail : | Mass | 1.26Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
|---|
4. LG Display LB170E01-SL01 Lightting Details :
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|
| Exchange | - | Amount | - | Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
|---|
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
|---|
| YEONHO | 10031HR-H06 | 1 pcs | 1.0 mm | 6 pins | |
| Backlight Driver : | With LED Driver |
|---|
| Driver Electrical : | Input Current | 1.05/1.16A (Typ./Max.) | Input Voltage | 12.0±0.5V |
|---|
| Consumption | 12.6/13.86W (Typ./Max.) |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
