5 Inch Portrait Type TFT LCD LD050WV1-SP01 For Handheld & PDA
Without Driver
1. Main Information:

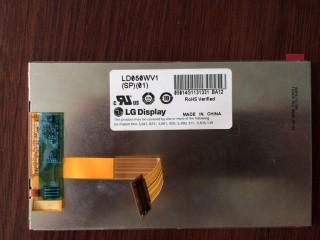

LD050WV1-SP01 (Alias: LD050WV1 (SP)(01)) is a 5.0" diagonal a-Si
TFT-LCD display panel product from LG Co., Ltd. with an integral
WLED backlight system, without backlight driver, without touch
screen. It features an operating temperature range of -20 ~ 70°C ,
a storage temperature range of -30 ~ 80°C .
It's general features are following: Portrait type, WLED Backlight,
Matte . Based on its features,this model be applied to Handheld &
PDA etc.
2. LG Display LD050WV1-SP01 Optical Features:
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|
| 500 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) |
| Best View on | Display Mode | Contrast Ratio |
| Symmetry | IPS, Normally Black, Transmissive | 700 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
|---|
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 49% | 69% | 52% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.25/1.40 (Typ./Max.)(9 points) |
|---|
3. LG Display LD050WV1-SP01 Mechanical Features:
| Panel Size: | 5 Inch |
|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
|---|
| 480(RGB)×800 [WVGA] | RGB Vertical Stripe | 0.135×0.135 [188PPI] | 0.045×0.135 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
|---|
| 64.8(H) × 108(V) | 67.2(H) × 110.4(V) | 71.4(H) × 120.4(V) | 2.5/4.31 (Typ./Max.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
|---|
| Flat Rectangle | Portrait type | 3:5 (H:V) | - |
| Other Detail : | Weight | Panel Cover | Treatment |
|---|
| 43.6/45.0g (Typ,/Max.) | - | Antiglare |
4. LG Display LD050WV1-SP01 Interface Features:
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
|---|
| 2.9V (Typ.) | 35/50mA (Typ./Max.) | 102/145mW (Typ./Max.) |
| Voltage for Display Signals : | -0.3≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC |
|---|
| Interface Features : | Position | Signal | Type |
|---|
| - | Parallel RGB (1 ch, 8-bit) + SPI | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
|---|
| Panasonic | AXT540124 | 0.4 mm | 40 pins | 1 pcs |
