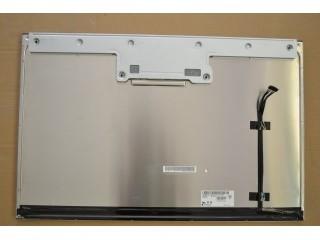

30 Inch 2560*1600 TFT LCD LM300WQ6-SLA1 Energy Star 7.0 Compliance
For Desktop Monitor
1. Main Information:
LM300WQ6-SLA1 (Alias: LM300WQ6 (SL)(A1)) is a 30.0" diagonal a-Si
TFT-LCD display panel product from LG Display Co., Ltd. with an
integral GB-r LED backlight system, without backlight driver,
without touch screen. It features an operating temperature range of
0 ~ 50°C , a storage temperature range of -20 ~ 60°C .
It's general features are following: DCI-P3, Adobe RGB, sRGB,
Upside I/F, 10 bit, Matte , Energy Star 7.0 Compliance; Adobe RGB.
Based on its featuresthis model be applied to Desktop Monitor etc.
2. LG Display LM300WQ6-SLA1 Mechanical Features:
| Screen Size : | 30 Inch |
|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 2560(RGB)×1600, WQXGA | RGB Vertical Stripe | 0.0835×0.2505 mm | 0.2505×0.2505 mm [101PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 641.28×400.8 mm | 646.3×405.8 mm | 677.3×436.8 mm | 11.0/18.5 (Typ./Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 16:10 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
|---|
| 4.15/4.36Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) |
| Holes & Brackets : | Side mounting holes (4 pcs) on left, right bezel |
|---|
3. LG Display LM300WQ6-SLA1 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| 350 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10 | 7/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
|---|
| 6485K | 1.07B (10-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 104% | 100% | 99% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 94% | 77% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.33 (Max.)(9 points) |
|---|
4. LG Display LM300WQ6-SLA1 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount
| Shape | Replacement |
|---|
| GB-r LED | Edge light type | 30K(Min.) | - | - | - |
| GB-r LED Electrical : | Input Voltage | Input Current | Power Consumption |
|---|
| 68.2/68.2V (Typ.)(Green/Blue) | 105/65mA (Typ.)(Green/Blue) | 46.4/49.4W (Typ./Max.) |
| Interface Features : | GB-r LED Driver State | Physical Type | Interface Position |
|---|
| No | Connector | - |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|
| E&T | H401K-D12N-12B | 1 pcs | 12 pins | 2.0 mm | BLE-12PINS-CCAACCCCAACC |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
