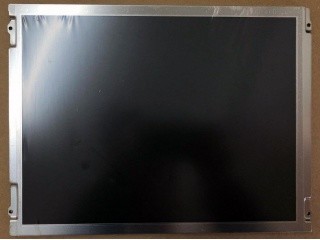

6.4 Inch LG TFT Display LB064V02-A1 250 (Typ.)(cd/m²) 45/45/15/35 (Typ.)(CR≥10)

6.4 Inch 640*480 30 pins Connector LB064V02-A1 Without Driver For Industrial

1. Main Information:

LB064V02-A1 (Alias: LB064V02 (A1)) is a 6.4 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).

It's general features are following: Matte . Based on its features,this model be applied to Industrial etc.

2. LCD LB064V02-A1 Mechanical Details:

Pixel Features :	Pixel Format	640(RGB)×480 [VGA]	Dot Pitch	0.068×0.204 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.204×0.204 mm (H×V) [124PPI]
Mechanical Size :	Display Area	130.56×97.92 mm (H×V)	Bezel Area	133.8×101.1 mm (H×V)
Mechanical Size :	Outline Dim.	145.5×111.5 mm (H×V)	Outline Depth	6.0±0.3 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style	-
Holes & Brackets :	Side mounting holes (4-M2)
Other Features :	Weight	160/170g (Typ./Max.)	Surface	Antiglare (Haze 13%), Hard coating (3H)

3. LCD LB064V02-A1 Optical Details:

Basic Information :	Brightness	250 cd/m² (Typ.)	Contrast Ratio	300:1 (Typ.) (Transmissive)
	Viewing Angle	45/45/15/35 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	15/30 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	-	Color Numbers	262K (6-bit)
Color Performance :	Color Temperature	-	White Uniformity	1.40/1.60 (Typ./Max.)(5 points)

4. LCD LB064V02-A1 Backlight Details:

Back-light Features:	Lamp Shape	-	Lamp Type	CCFL	Life Time	20K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	1 pcs	Position	Edge light type (Bottom side)
Lamp Electrical :	Voltage Input	355V (Typ.)		Current Input	5.0mA (Typ.)
	Frequency	40/60/80KHz (Min./Typ./Max.)		Kick-off Voltage	-
	Consumption	1.78W (Typ.)
Interface Features :	Type	Connector	Position	-	Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	JST	BHSR-02VS-1	3.5 mm	2 pins	1 pcs	BLL-2PINS-HL

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
