LB190E01-SL01 Grayscale 8 Bit 19 Inch LG TFT Display 85/85/85/85 (Min.)(CR≥10)

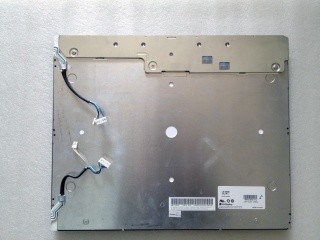

19 Inch Grayscale TFT LCD Panel LB190E01-SL01 Without Touch Panel

1. Main Information:

LB190E01-SL01 (Alias: LB190E01 (SL)(01)) is a 19.0" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. with an integral CCFL backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are following: Ultra High Brightness, Matte . Based on its features, this model be applied to Medical Imaging etc.

2. LG Display LB190E01-SL01 Optical Features:

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	1000 (Typ.)	85/85/85/85 (Min.)(CR≥10)	11/14 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	900 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	9676K	Grayscale (8-bit)	X:0.272; Y:0.313
Performance :=	3D Tech	Sunlight Visibility	Reflectance
Performance :=	-	Sunlight Readable	-

3. LG Display LB190E01-SL01 Mechanical Features:

Panel Size	19 Inch
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1280(LCR)×1024 [SXGA]	LCR Vertical Stripe	0.294×0.294 [86PPI]	0.098×0.294
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	376.32(H) × 301.056(V)	380.3(H) × 305.0(V)	396(H) × 324(V)	16.5/20.5 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	5:4 (H:V)	-
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	2.59/2.70Kgs (Typ./Max.)	-	Antiglare, Hard coating (3H)

4. LG Display LB190E01-SL01 Backlight Features:

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	CCFL	Edge light type (Top and Bottom)	6 pcs	Straight	45K(Min.)	-
CCFL Electrical :	Voltage Supply		Current Supply			Power
	655/675/790V (Min./Typ./Max.)		3.0/7.0/7.5mA (Min./Typ./Max.)			28.35/31.19W (Typ./Max.)
	Operating Frequency			Kick-off Voltage
	40/70KHz (Min./Max.)			1050/1250V (Max.)(Ta=+25/0℃)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
	JST	BHSR-02VS-1	3.5 mm	2 pins	2 pcs	BLL-2PINS-HL
	JST	BHR-05VS-1	4.0 mm	5 pins	2 pcs	BLL-5PINS-HHNLL
