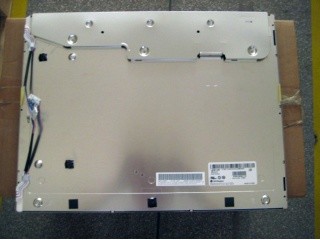

LM201U05-SLL1 Desktop Monitor 20.1 Inch Symmetry A-Si TFT LCD

20.1 Inch Symmetry a-Si TFT-LCD LM201U05-SLL1 Designed For Desktop Monitor

1. Main Information:

LM201U05-SLL1 (Alias: LM201U05 (SL)(L1)) is a 20.1" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are following: Matte . Based on its features, this model be applied to Desktop Monitor etc.

2. LG Display LM201U05-SLL1 Mechanical Features:

Panel Size :	20.1 Inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1600(RGB)×1200, UXGA	RGB Vertical Stripe	0.085×0.255 mm	0.255×0.255 mm [99PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	408×306 mm	413.0×311.0 mm	432×331.5 mm	17.4/25.5 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type	-
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	3.20/3.25Kgs (Typ./Max.)	Antiglare (Haze 25%), Hard coating (3H)

3. LG Display LM201U05-SLL1 Optical Features:

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	300 cd/m² (Typ.)	IPS, Normally Black, Transmissive	800:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	89/89/89/89 (Typ.)(CR≥10)	Symmetry	6.5/7.5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	94%	75%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.33 (Max.)(9 points)

4. LG Display LM201U05-SLL1 Backlight Features:

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	CCFL	Edge light type (Top and Bottom)	Straight	6 pcs	45K(Min.)	-
CCFL Electrical :	Current Input		Voltage Input			Consumption
	3.0/7.0/8.0mA (Min./Typ./Max.)		670/700/825V (Min./Typ./Max.)			29.4/32.3W (Typ./Max.)
	Turn-on Voltage		Lamp Frequency
	1150/1450V (Max.)(Ta=+25/0℃)		40/50/80KHz (Min./Typ./Max.)
Interface Features :	Position	Type	CCFL Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
	JST	BHSR-02VS-1	2 pcs	3.5 mm	2 pins	BLL-2PINS-HL
	JST	BHR-05VS-1	2 pcs	4.0 mm	5 pins	BLL-5PINS-HHNLL
