1. Main Information:

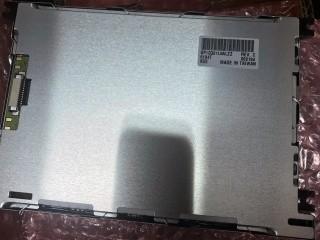

SP12Q01L6ALZZ is a 4.7" diagonal FSTN-LCD display panel product from Kaohsiung
Opto-Electronics Inc. (hereafter called KOE), with an integral WLED backlight system, without backlight
driver, without touch screen. It features an operating temperature
range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C ,
and the maximal vibration level of 1.2G (11.76 m/s²). It's general
features are summarized by Panelook in the following: WLED
Backlight, Matte . Based on its features, Panelook recommend that
this model be applied to Industrial etc.
2. KOE SP12Q01L6ALZZ Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|
| 200 (Typ.) | 45/45/35/45 (Typ.)(CR≥2) | 280/280 (Typ.)(Tr/Td) |
| Best View on | Display Mode | Contrast Ratio |
| 6 o'clock | STN, Black/White mode, Transmissive | 20 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
|---|
| - | Monochrome | - |
3. KOE SP12Q01L6ALZZ Mechanical Features
| Panel Size : | 4.7" |
|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
|---|
| 320×240 [QVGA] | Rectangle | 0.300×0.300 [84PPI] | 0.300×0.300 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
|---|
| 95.97(H) × 71.97(V) | 104.0(H) × 79.5(V) | 129.6(H) × 92.6(V) | 7.5 (Max.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
|---|
| Flat Rectangle | Landscape type | 4:3 (H:V) | - |
| Mounting : | Face mounting holes (4-R1.5) |
|---|
| Other Detail : | Weight | Panel Cover | Treatment |
|---|
| 110g (Typ.) | - | Antiglare |
4. KOE SP12Q01L6ALZZ Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
|---|
| 5.0V (Typ.) | 8.0mA (Typ.) | - |
| Interface Features : | Position | Signal | Type |
|---|
| - | Parallel Data (4-bit) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
|---|
| TOKUTSU | BL-113-12RU | 1.0 mm | 12 pins | 1 pcs |
