1. Main Information:

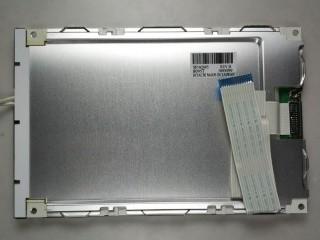

SP14Q005 is a 5.7" diagonal FSTN-LCD display panel product from Kaohsiung Hitachi
Electronics Co., Ltd. (hereafter called HITACHI), with an integral CCFL backlight system, without backlight
driver, without touch screen. It features an operating temperature
range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C ,
and the maximal vibration level of 1.2G (11.76 m/s²). It's general
features are summarized by Panelook in the following: Life ≥ 50K
hours, Matte . Based on its features, Panelook recommend that this
model be applied to Industrial etc
2. HITACHI SP14Q005 Mechanical Features
| Panel Size : | 5.7 inch |
|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
|---|
| 320×240, QVGA | Rectangle | 0.360×0.360 mm | 0.360×0.360 mm [70PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
|---|
| 115.185×86.385 mm | 122.0×92.0 mm | 167×109 mm | 8.5/10.0 (Typ.Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
| Fixation : | Face mounting holes (4-Φ3.5) |
|---|
| Other Features : | Panel Cover | Weight | Surface |
|---|
| - | - | Antiglare |
3. HITACHI SP14Q005 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|
| 220 cd/m² (Typ.) | STN, Black/White mode, Transmissive | 25:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 40/40/30/50 (Typ.)(CR≥2) | 6 o'clock | 330/150 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
|---|
| - | Monochrome | - |
4. HITACHI SP14Q005 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|
| CCFL | Edge light type | - | 1 pcs | 50K(Typ.) | - |
| CCFL Electrical : | Current Input | Voltage Input | Consumption |
|---|
| 5.0±1mA | 300V (Typ.) | |
| Turn-on Voltage | Lamp Frequency |
| 1000V (Min.)(Ta=+25℃) | 70/85KHz (Typ./Max.) |
| Interface Features : | Position | Type | CCFL Driver |
|---|
| - | Connector | No |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
|---|
| JAE | IL-G-4S-S3C2 | 1 pcs | 2.5 mm | 4 pins | BLL-4PINS-HNNL |
