1. Main Information:
The

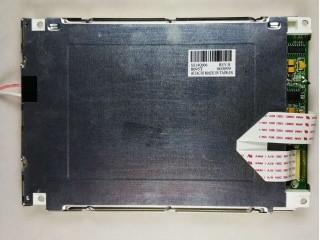

SX14Q006 is a
5.7 inch diagonal CSTN-LCD display panel product from Kaohsiung Hitachi
Electronics Co., Ltd. (hereafter called
HITACHI), with an integral CCFL backlight system, without backlight
driver, without touch screen. Based on its features, Panelook
recommend that this model be applied to
Industrial etc. Now this model is discontinued. There are 6 items stock and 4
suppliers of this model on Panelook. We inputted this model's
specification on Jan 5 2013 for the first time, and the latest
update on Feb 28 2017. If you want to embed SX14Q006 LCM in your
future product, Panelook strongly recommend that you should contact
with HITACHI or it's agent to learn lateast production and
specification detail. The SX14Q006 production status marked on
Panelook.com is for reference only and should not be used as the
basis for the user's decision making. The above parameters are not
from the datasheet, only as a reference, please use with caution!
2. HITACHI SX14Q006 Mechanical Features
| Screen Size : | 5.7" |
|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 115.2×86.4 mm | - | - | - |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 | Landscape type | - |
3. HITACHI SX14Q006 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| - | STN, Normally Black | - |
| Good View at | Viewing Angle | Response Time |
| - | - | - |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
|---|
| - | Color | - |
4. HITACHI SX14Q006 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|
| CCFL | Edge light type | - | - | - | - |
| Interface Features : | CCFL Driver State | Physical Type | Interface Position |
|---|
| No | Connector | - |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
