4.7 Inch FSTN LCD Panel LMG7520RPFC Hitachi TFT Displays 129.6(H)×92.6(V) ×7.5(D) mm

Ask Lasest Price
Brand Name :	KOE
Model Number :	LMG7520RPFC
Certification :	ISO9001
Price :	80USD
Payment Terms :	T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :	500PCS
Delivery Time :	1 DAY

Add to Cart

Product Details
Company Profile

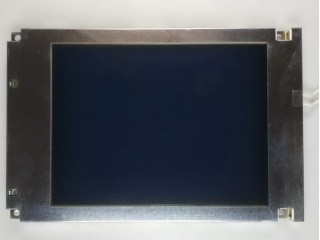

4.7 Inch FSTN LCD Panel LMG7520RPFC Hitachi TFT Displays 129.6(H)×92.6(V) ×7.5(D) mm

4.7 Inch Glossy FSTN-LCD LMG7520RPFC Monochrome W/O Driver Without Touch Panel

1. Main Information:

LMG7520RPFC is a 4.7" diagonal FSTN-LCD display panel product from Kaohsiung Opto-Electronics Inc.with an integral CCFL backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 40°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are following: Glossy . Based on its features,this model be applied to Industrial etc.

2. LMG7520RPFC Mechanical Features:

Panel Size :	4.7 Inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	320×240, QVGA	Rectangle	0.300×0.300 mm	0.300×0.300 mm [84PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	96×72 mm	104.0×79.5 mm	129.6×92.6 mm	7.5 (Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type	-
Fixation :	Face mounting holes (4-R1.5)
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	110g (Typ.)	Glare (Haze 0%), Hard coating (3H)

3. LMG7520RPFC Optical Features:

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	100 cd/m² (Typ.)	STN, Black/White (Negative), Transmissive	20:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	40 (Typ.)(CR≥2, Φ2-Φ1)	6 o'clock	160/110 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	-	Monochrome	-

4.LMG7520RPFC Backlight Features:

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	CCFL	Edge light type (Top side)	-	1 pcs	-	-
CCFL Electrical :	Current Input		Voltage Input			Consumption
	5±1mA		300V (Typ.)
	Turn-on Voltage		Lamp Frequency
	1000V (Min.)(Ta=+25℃)		70/85KHz (Typ./Max.)
Interface Features :	Position	Type	CCFL Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JAE	IL-G-4S-S3C2-SA	1 pcs	2.5 mm	4 pins	BLL-4PINS-HNNL

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
