1. Main Information:

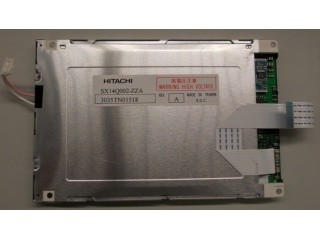

Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI) SX14Q002-ZZA is a 5.7 inch diagonal CSTN-LCD display panel product, with an integral CCFL
backlight system, touchscreen 4-wire Resistive Touch. It's general
features are summarized by Panelook in the following: With Touch .
Based on its features, Panelook recommend that this model be
applied to Industrial etc
Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called
HITACHI)
SX14Q002-ZZA is a
5.7 inch diagonal CSTN-LCD display panel product, with an integral CCFL
backlight system, touchscreen 4-wire Resistive TouchIt's general
features are summarized by Panelook in the following: With Touch .
Based on its features, Panelook recommend that this model be
applied to
Industrial etc. Now this model is discontinued. There are 4 items stock and 2
suppliers of this model on Panelook. We inputted this model's
specification on Jan 5 2013 for the first time, and the latest
update on Feb 28 2017. If you want to embed SX14Q002-ZZA LCM in
your future product, Panelook strongly recommend that you should
contact with HITACHI or it's distributor to learn lateast
production and specification detail. The SX14Q002-ZZA production
status marked on Panelook.com is for reference only and should not
be used as the basis for the user's decision making. The above
parameters are not from the datasheet, only as a reference, please
be caution of useing !
2. HITACHI SX14Q002-ZZA Mechanical Features
| Panel Size : | 5.7" |
|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
|---|
| 320(RGB)×240 [QVGA] | RGB Vertical Stripe | 0.360×0.360 [70PPI] | 0.120×0.360 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
|---|
| 115.2(H) × 86.4(V) | - | - | - |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
|---|
| Flat Rectangle | Landscape type | 4:3 (H:V) | - |
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
|---|
| - | - | - | 4-wire Resistive Touch |
3. HITACHI SX14Q002-ZZA Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|
| - | - | - |
| Best View on | Display Mode | Contrast Ratio |
| - | STN, Normally Black, Transmissive | - |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
|---|
| - | Color | - |
4. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
