1. Main Information:

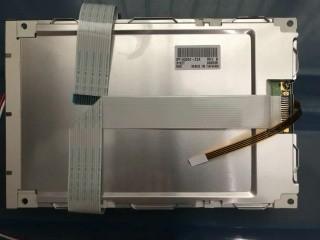

SP14Q006-ZZA is a 5.7" diagonal FSTN-LCD display panel product from Kaohsiung Hitachi
Electronics Co., Ltd. (hereafter called HITACHI), with an integral WLED backlight system, without backlight
driver, touchscreen 4-wire Resistive Touch. It features an
operating temperature range of -20 ~ 70°C , a storage temperature
range of -30 ~ 80°C , and the maximal vibration level of 1.2G
(11.76 m/s²). It's general features are summarized by Panelook in
the following: With Touch, WLED Backlight, Matte . Based on its
features, Panelook recommend that this model be applied to Industrial etc
2. HITACHI SP14Q006-ZZA Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|
| 110 (Typ.) | 45/45/40/40 (Typ.)(CR≥2) | 336/148 (Typ.)(Tr/Td) |
| Best View on | Display Mode | Contrast Ratio |
| 6 o'clock | STN, Black/White mode, Transmissive | 25 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
|---|
| - | Monochrome | - |
3. HITACHI SP14Q006-ZZA Mechanical Features
| Panel Size : | 5.7" |
|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
|---|
| 320×240 [QVGA] | Rectangle | 0.360×0.360 [70PPI] | 0.360×0.360 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
|---|
| 115.185(H) × 86.385(V) | 122.0(H) × 92.0(V) | 167(H) × 109(V) | 11.4 (Max.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
|---|
| Flat Rectangle | Landscape type | 4:3 (H:V) | - |
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
|---|
| - | - | - | 4-wire Resistive Touch |
| Mounting : | Face mounting holes (4-Φ3.5) |
|---|
| Other Detail : | Weight | Panel Cover | Treatment |
|---|
| - | - | Antiglare |
4. HITACHI SP14Q006-ZZA Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|
| WLED | Edge light type | - | - | 40K(Typ.) | - |
| WLED Electrical : | Voltage Supply | Current Supply | Power |
|---|
| 5.0/5.2V (Typ./Max.) | 160mA (Typ.) | |
| Interface Features : | Position | Backlight Driver | Type |
|---|
| - | No | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
|---|
| JAE | IL-G-4S-S3C2-SA | 2.5 mm | 4 pins | 1 pcs | BLE-4PINS-ANNC |
