1. Main Information:

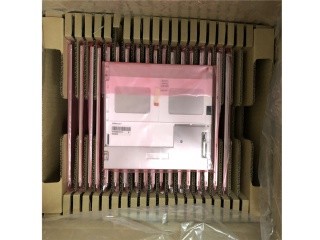

TM104SDH03 is a 10.4" diagonal a-Si TFT-LCD display panel product
from Tianma Microelectronics Co., Ltd.with an integral WLED
backlight system, With LED Driver , without touch screen. It
features an operating temperature range of -30 ~ 80°C , a storage
temperature range of -30 ~ 85°C .
It's general features are following: Wide Temperature, WLED
Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8
bit, Matte . Based on its features, this model be applied to
Industrial etc.
2. TIANMA TM104SDH03 Mechanical Features:
| Panel Size : | 10.4 Inch |
|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
|---|
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
|---|
| 211.2×158.4 mm | 214.8×161.8 mm | 243×179.4 mm | 8.5 (Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
|---|
| Other Features : | Panel Cover | Weight | Surface |
|---|
| - | 433g (Typ.) | Antiglare, Hard coating (3H) |
3. TIANMA TM104SDH03 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 70/70/60/70 (Typ.)(CR≥10) | 12 o'clock | 10/15 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
|---|
| 6760K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.305; Y:0.345 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 50% | 67% | 52% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM104SDH03 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|
| WLED | Edge light type | Array | 5S8P | 50K(Typ.) | - |
| Interface Features : | Position | Type | WLED Driver |
|---|
| - | Connector | With LED Driver |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
|---|
| E&T | 3808K-F05N-03R | 1 pcs | 1.25 mm | 5 pins | |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
|---|
| 0.2A (Typ.) | 12/14.25/16.5V (Min./Typ./Max.) | 2.85W (Typ.) |
