1. Main Information:

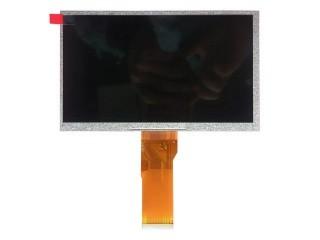

Tianma Microelectronics Co., Ltd.TM070RDH10-40 is a 7.0 inch
diagonal a-Si TFT-LCD display panel product, with an integral WLED
backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a
storage temperature range of -30 ~ 80°C . It's general features are
following: WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte ,
80.15mm length FPC. Based on its features,this model be applied to
Industrial, Digital Photo Frame, Portable DVD Player etc.
2. TIANMA TM070RDH10-40 Mechanical Features:
| Screen Size | 7 Inch |
|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0642×0.1790 mm | 0.1926×0.1790 mm [134PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 154.08×85.92 mm | 157.08×89.39 mm | 164.9×100 mm | 5.7±0.3 mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 16:9 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
|---|
| 160g (Typ.) | - | Antiglare |
| Holes & Brackets : | Without
|
|---|
3. TIANMA TM070RDH10-40 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| 12 o'clock | 80/80/60/80 (Typ.)(CR≥10) | 15 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
|---|
| 6819K | 262K/16.7M (6-bit / 6-bit + Dithering) | X:0.309; Y:0.318 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 52% | 72% | 54% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.18/1.25 (Typ./Max.)(9 points) |
|---|
4. TIANMA TM070RDH10-40 Interface Features:
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
|---|
| 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | 10/30/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL) | - |
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
|---|
| Interface Features : | Signal Type | Physical Type | Interface Position |
|---|
| Parallel RGB (1 ch, 6/8-bit) | FPC | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|
| | 1 pcs | 50 pins | 0.5 mm | DRGB-50P1C8B-115A |
