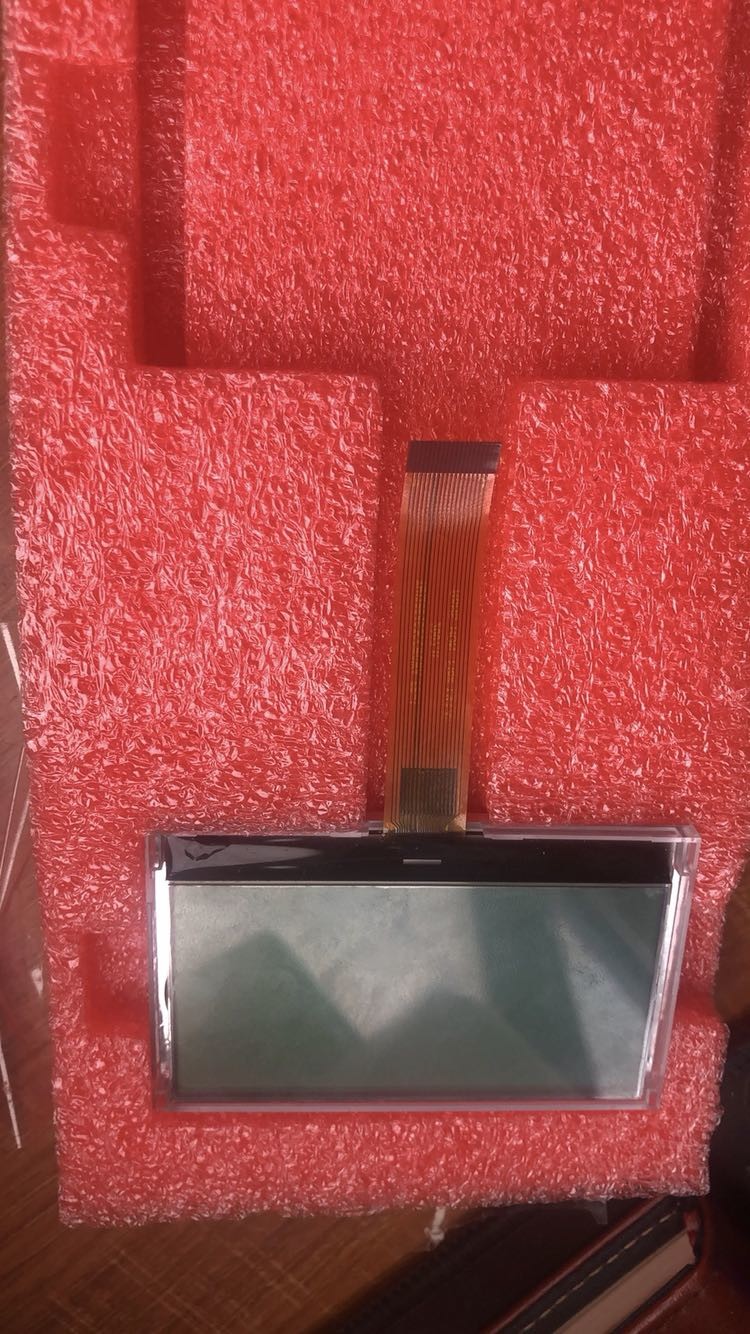

TM12864G3CCWGWA-1 SPI 2.4 Inch 128*64 FSTN LCD Display 70(W)×43(H)×9(D)

1. Main Information:

The TM12864G3CCWGWA-1 is a 2.4 inch diagonal FSTN-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, without touch screen.

It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: Transflective, WLED Backlight . Based on its features, this model be applied to Instruments & Meters etc.

2. TIANMA TM12864G3CCWGWA-1 Mechanical Details:

Pixel Features :	Pixel Format	128×64	Dot Pitch	0.43×0.43 mm (H×V)
Pixel Features :	Configuration	Rectangle	Pixel Pitch	0.43×0.43 mm (H×V) [59PPI]
Mechanical Size :	Display Area	55.01×27.49 mm (H×V)	Bezel Area	58×29.5 mm (H×V)
Mechanical Size :	Outline Dim.	70×43 mm (H×V)	Outline Depth	9.0 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	2:1 (H:V)	Shape Style	-
Holes & Brackets :	Without
Other Features :	Weight	26.0g	Surface	-

3. TIANMA TM12864G3CCWGWA-1 Optical Details:

Basic Information :	Brightness	-	Contrast Ratio	3:1 (Min.) (Reflective)
	Viewing Angle	-	Optical Mode	STN, Black/White (Positive), Transflective
	Viewing Direction	6 o'clock	Response Time	250/200 (Max.)(Tr/Td) (ms)
Color Performance :	Chromaticity	-	Color Numbers	Monochrome
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance	-

4. TIANMA TM12864G3CCWGWA-1 Backlight Details:

Back-light Features:	Lamp Shape	Parallel	Lamp Type	WLED	Life Time	-
Back-light Features:	Replacement	-	Amount	1S4P	Position	Edge light type
Lamp Electrical :	Voltage Input	4.0±0.2V		Current Input	60mA (Typ.)

5. TIANMA TM12864G3CCWGWA-1 Interface Details:

Signal Systerm	SPI			Logic Voltage	-
Signal Electrical :	Voltage Input	3.0V (Typ.)		Current Input	8.0mA (Max.)
Interface Features :	Type	FPC	Position	-
FPC Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
FPC Detail :			0.5 mm	20 pins	1 pcs
