1. Main Information:

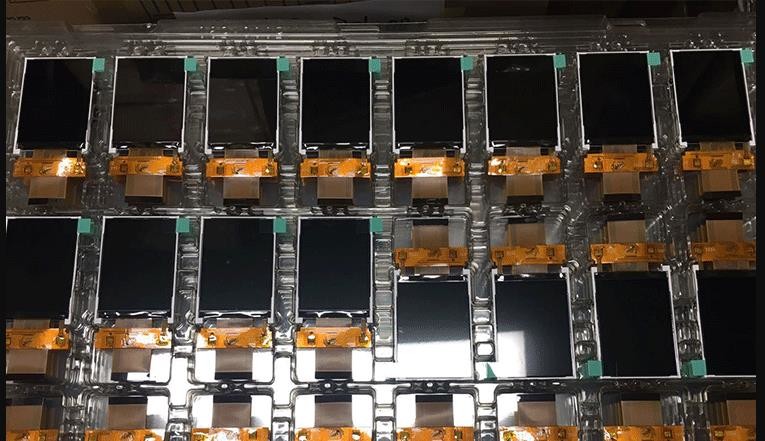

The TM022HDHT11 is a 2.2 inch diagonal a-Si TFT-LCD display panel
product from Tianma Microelectronics Co., Ltd. with an integral
WLED backlight system, without backlight driver, without touch
screen.
It features an operating temperature range of -20 ~ 70°C , a
storage temperature range of -30 ~ 80°C . It's general features are
following: Portrait type, Transflective, WLED Backlight , R-EVT.
Based on its features,this model be applied to Mobile Phone,
Handheld & PDA etc.
2. TIANMA TM022HDHT11 Optical Details:
| Basic Information : | Luminance | 90 cd/m² (Typ.) | Contrast Ratio | 120 : 1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective) |
|---|
| Good View at | 12 o'clock | Response Speed | 35 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 40/45/48/45 (Typ.)(CR≥10) | Operating Mode | ECB, Normally White, Transflective |
| Color Performance : | Chromaticity | Wx:0.273; Wy:0.296 | Support Color | 262K (6-bit) |
|---|
| Color Temperature | 10418K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
|---|
| 3D Tech | - | Reflectance | 5.5% (Typ.) |
3. TIANMA TM022HDHT11 Mechanical Details:
| Pixel Features : | Number of Pixel | 240(RGB)×320 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.047×0.141 mm | Pixel Pitch(W×H) | 0.141×0.141 mm [180PPI] |
| Physical Size : | Active Viewing | 33.84(W)×45.12(H) mm | Overall Dim. | 40.6(W)×56.6(H) mm |
|---|
| Bezel Opening | 34.84(W)×46.12(H) mm | Overall Depth | 2.7±0.2 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
|---|
| Aspect Ratio(W:H) | 3:4 | Shape Style | - |
| Other Detail | Mass | TBD | Surface | Clear, Hard coating (3H) |
|---|
4. TIANMA TM022HDHT11 Lightting Details:
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|
| Exchange | - | Amount | 4S1P | Life | 20K(Typ.) (Hours) |
| Lamp Electrical : | Input Current | 20/25mA (Typ./Max.) | Input Voltage | 12/12.6/14.4V (Min./Typ./Max.) |
|---|
| Consumption | 246mW (Typ.) |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface |
|---|
| Backlight Driver : | No |
|---|
