1. Main Information:

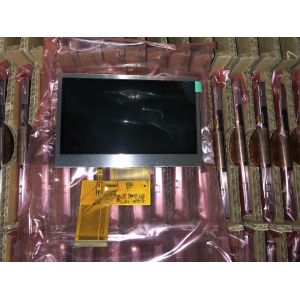

Tianma Microelectronics Co., Ltd.TM057KDH03 is a 5.7 inch diagonal
a-Si TFT-LCD display panel product, with an integral WLED backlight
system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a
storage temperature range of -30 ~ 85°C . It's general features are
following: WLED Backlight, Life ≥ 50K hours, U/D,L/R Reverse, Matte
, lamp wire length: 80mm. Based on its features,this model be
applied to Industrial etc.
2. TIANMA TM057KDH03 Optical Details:
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | 6 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.324; Wy:0.362 | Support Color | 262K (6-bit) |
|---|
| Color Temperature | 5814K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 73% coverage |
|---|
| Adobe RGB | 56% coverage | DCI-P3 | 56% coverage |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3. TIANMA TM057KDH03 Mechanical Details:
| Pixel Features | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 144(W)×104.6(H) mm |
|---|
| Bezel Opening | 118.2(W)×89.4(H) mm | Overall Depth | 12.8 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | 4:3 | Shape Style | - |
| Fixation : | Rear mounting poles (4-Φ2.6) |
|---|
| Other Detail : | Mass | 160g | Surface | Antiglare, Hard coating (3H |
|---|
4. TIANMA TM057KDH03 Interface Details:
| Signal Electrical : | Input Current | 145/225mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
|---|
| Interface Features : | Position | - | Physical Type | Connector |
|---|
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
|---|
| STARCONN | 089H33-000100-G2-R | 1 pcs | 0.5 mm | 33 pins | DRGB-33P1C6B-020B |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
