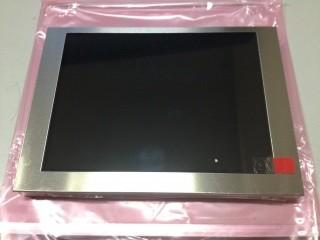

    5.7 Inch 320*240 TM057KBH01 WLED Backlight Tianma TFT 70/70/70/60 (Typ.)(CR≥10)

    Ask Lasest Price
    Brand Name : Tianma
    Model Number : TM057KBH01
    Certification : ISO9001
    Payment Terms : T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
    Supply Ability : 200PCS
    Delivery Time : Working Day:1-3 Days
    • Product Details
    • Company Profile

    5.7 Inch 320*240 TM057KBH01 WLED Backlight Tianma TFT 70/70/70/60 (Typ.)(CR≥10)

    1. Main Information:

    TM057KBH01 is a 5.7" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 85°C . It's general features are following: With Touch, WLED Backlight, Life ≥ 50K hours, U/D,L/R Reverse, Matte . Based on its features,this model be applied to Industrial etc.


    2. TIANMA TM057KBH01 Mechanical Features:

    Panel Size :5.7 Inch
    Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
    320(RGB)×240, QVGARGB Vertical Stripe0.120×0.360 mm0.360×0.360 mm [70PPI]
    Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
    115.2×86.4 mm117.6×88.8 mm144×104.6 mm14.0 (Max.) mm
    Outline Features :Form StyleAspect RatioOrientationShape Style
    Flat Rectangle4:3 (W : H)Landscape type-
    Touchscreen :Touch PointsTP ControllerSignal TypeTouch Tech
    ---4-wire Resistive Touch
    Fixation :Rear mounting poles (4-Ф2.6)
    Other Features :Panel CoverWeightSurface
    -TBDAntiglare, Hard coating (3H)

    3. TIANMA TM057KBH01 Optical Features:

    Basic Information :BrightnessOperating ModeContrast Ratio
    320 cd/m² (Typ.)TN, Normally White, Transmissive500:1 (Typ.) (Transmissive)
    Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
    70/70/70/60 (Typ.)(CR≥10)6 o'clock20 (Typ.)(Tr+Td) (ms)
    Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
    5814K262K (6-bit)X:0.324; Y:0.362
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    54%73%56%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    55%40%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Luminance Variation :1.25/1.33 (Typ./Max.)(9 points)

    4. TIANMA TM057KBH01 Interface Features:

    Signal Electrical :Current InputVoltage InputConsumption
    145/225mA (Typ./Max.)3.3V (Typ.)-
    Voltage for Display Signals :0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
    Interface Features :PositionTypeInterface
    -ConnectorParallel RGB (1 ch, 6-bit)
    Signal Interface :BrandModelAmountPin PitchPinsPin Assignment
    STARCONN089H33-000100-G2-R1 pcs0.5 mm33 pinsDRGB-33P1C6B-020B

      5. FAQ:


      Q1: What's the quality of your LCD Panel?
      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?
      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?
      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?
      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
