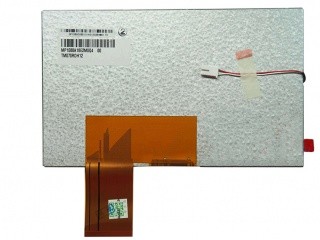

Automotive 7" 800*480 TM070RDH12 FPC 60 Pins TFT LCD Panel 70/70/60/70 (Typ.)(CR≥10)

1. Main Information:

Tianma Microelectronics Co., Ltd.TM070RDH12 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features,this model be applied to Automotive Display, Digital Photo Frame, Portable DVD Player etc.

2. TIANMA TM070RDH12 Mechanical Features:

Panel Size :	7 Inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	800(RGB)×480, WVGA	RGB Vertical Stripe	0.0642×0.1790 mm	0.1926×0.1790 mm [134PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	154.08×85.92 mm	157.08×90.1 mm	164.9×100 mm	5.7±0.3 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type	-
Fixation :	Without
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	TBD	Antiglare

3. TIANMA TM070RDH12 Optical Features:

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	350 cd/m² (Typ.)	TN, Normally White, Transmissive	500:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	70/70/60/70 (Typ.)(CR≥10)	12 o'clock	20 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	5864K	262K/16.7M (6-bit / 6-bit + Dithering)	X:0.324; Y:0.345
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	51%	71%	54%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	53%	38%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.25/1.33 (Typ./Max.)(9 points)

4. TIANMA TM070RDH12 Backlight Features:

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	Array	3S7P	20K(Typ.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	140mA (Typ.)		9.6/11.4V (Typ./Max.)			1.344W (Typ.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	BHSR-02VS-1	1 pcs	3.5 mm	2 pins	BLE-2PINS-AC

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
