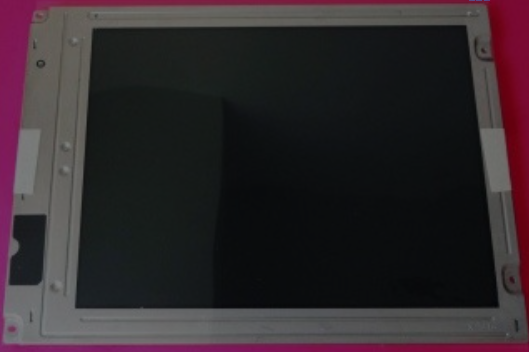

LQ104V1DG11 10.4 INCH SHARP TFT-LCD 640(RGB)×480 [VGA] 76PPI PIXEL
0 ~ 55 °C Industrial LCD Panel
1.Main Information:
LQ104V1DG11 is a 10.4" diagonal a-Si TFT-LCD display panel product
from Sharp Corporation (hereafter called Sharp), with an integral
CCFL backlight system, without backlight driver, without touch
screen. It features an operating temperature range of 0 ~ 55°C , a
storage temperature range of -25 ~ 70°C , and the maximal vibration
level of 1.0G (9.8 m/s²). It's general features are summarized by
Panelook in the following: Lamp Repaceable, Life ≥ 50K hours,
U/D,L/R Reverse, Matte . Based on its features, Panelook recommend
that this model be applied to Industrial etc.
2.
Sharp LQ104V1DG11 Mechanical Features
| Screen Size : | 10.4" |
|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 211.2×158.4 mm | 215.2×162.4 mm | 265×195 mm | 11.0±0.5 mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
|---|
| 695g (Typ.) | - | Antiglare (Haze 28%), Hard coating (3H), Antireflection |
3.
Sharp LQ104V1DG11 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| 6 o'clock | 70/70/40/70 (Typ.)(CR≥10) | 20/40 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
|---|
| 6926K | 262K (6-bit) | X:0.305; Y:0.329 |
| White Uniformity : | 1.45 (Max.)(5 points) |
|---|
4.
Sharp LQ104V1DG11 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|
| CCFL | Edge light type (Top and Bottom) | 50K(Typ.) | 2 pcs | Straight | Replaceable (LQ0DDB9000) |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption |
|---|
| 500V (Typ.) | 2.0/6.0/6.5mA (Min./Typ./Max.) | 6.0W (Typ.) |
| Operating Frequency | Startup Voltage |
| 20/35/60KHz (Min./Typ./Max.) | 950/1250V (Max.)(Ta=+25/0℃) |
| Interface Features : | CCFL Driver State | Physical Type | Interface Position |
|---|
| No | Connector | |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL |
