1.HIGHEST QUALITY STANDARD DISPLAYS:
The

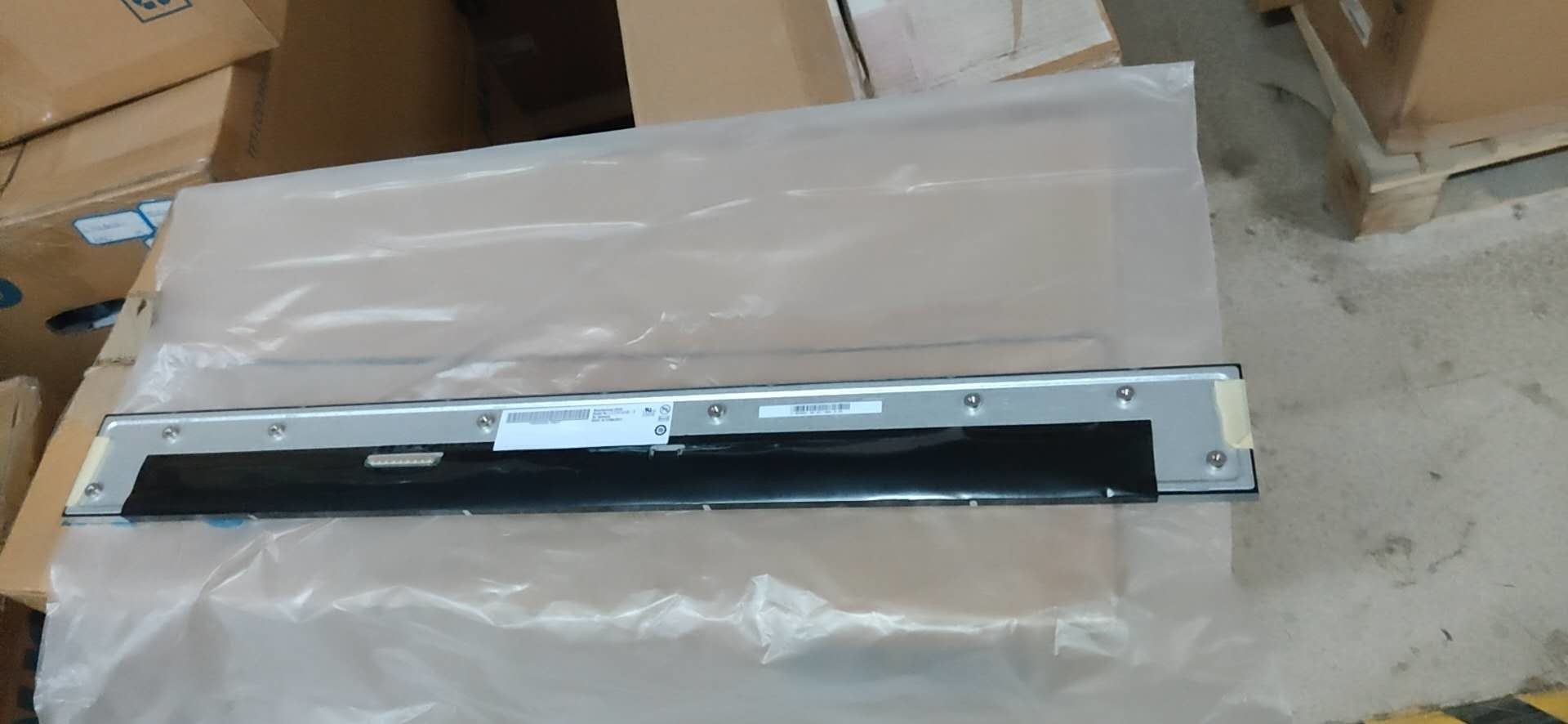

G229HAN01.0 is a
22.9 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.
(hereafter called
AUO), with an integral WLED backlight system, With LED Driver ,
without touch screen. It features an operating temperature range of
0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the
maximal vibration level of 1.5G (14.7 m/s²). It's general features
are summarized by Panelook in the following: WLED Backlight, Life ≥
70K hours, With LED Driver, Bar Display, Matte . Based on its
features, Panelook recommend that this model be applied to
Industrial,
Stretched Bar LCD etc. According to the information stored in Panelook this model
mass production on Q4, 2018 and last shippment on Q1, 2023, Now
this model is discontinued. There are 10 items stock and 15
suppliers of this model on Panelook. We inputted this model's
specification on Jun 25 2019 for the first time, and the latest
update on Sep 5 2023. If you want to embed G229HAN01.0 LCM in your
future product, Panelook strongly recommend that you should contact
with AUO or it's agent to learn lateast production and
specification detail. The G229HAN01.0 production status marked on
Panelook.com is for reference only and should not be used as the
basis for the user's decision making. All specification details are
inputted by Panelook engineers according to datasheet, but we
cannot guarantee the spec listed is entirely correct.
2. AUO G229HAN01.0 Optical Details:
| Basic Information | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | - | Support Color | 16.7M (8-bit) |
|---|
3. AUO G229HAN01.0 Mechanical Details:
| Pixel Features : | Number of Pixel | 1920(RGB)×165 | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.1005×0.3105 mm | Pixel Pitch(W×H) | 0.3105×0.3105 mm [84PPI] |
| Physical Size : | Active Viewing | 578.88(W)×49.7475(H) mm | Overall Dim. | 587.08(W)×62.05(H) mm |
|---|
| Bezel Opening | 580.88(W)×51.75(H) mm | Overall Depth | 10.71 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | >3:1 | Shape Style | - |
| Fixation : | Rear mounting holes (8-M3) |
|---|
| Other Detail : | Mass | 460g (Typ.) | Surface | Antiglare, Hard coating (3H) |
|---|
4. AUO G229HAN01.0 Interface Details:
| Signal Electrical | Input Current | 0.37/0.44A (Typ./Max.) | Input Voltage | 12.0V (Typ.) |
|---|
| Consumption | 1.85/2.2W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
|---|
| Signal Interface | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
|---|
| STM | MSBKT2407P30HB | 1 pcs | 1.0 mm | 30 pins |
5.FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
