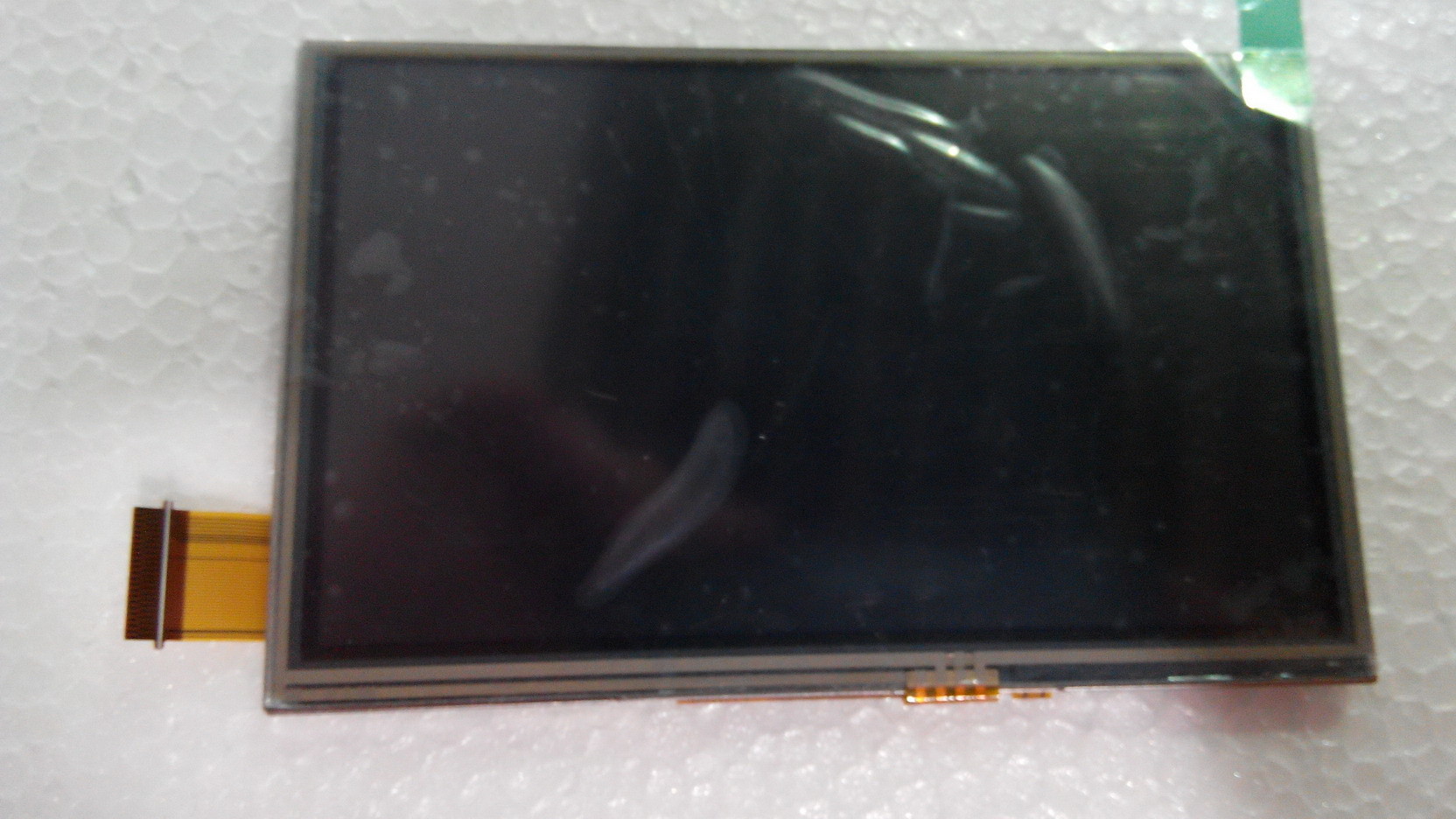

    250cd/m² 5.0" 800×480 WVGA 188PPI TFT LCD Panel TM050RDH03-00

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM050RDH03-00
    Certification : ISO9001
    Payment Terms : TT / Escrow 10 / Paypal / WesternUnion
    Supply Ability : 500PCS
    Delivery Time : 1-3 Working Day
    • Product Details
    • Company Profile

    250cd/m² 5.0" 800×480 WVGA 188PPI TFT LCD Panel TM050RDH03-00

    1.HIGHEST QUALITY STANDARD DISPLAYS


    As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.


    Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.


    2. TIANMA TM050RDH03-00 Mechanical Features

    Screen Size :5.0"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    800(RGB)×480, WVGARGB Vertical Stripe0.045×0.135 mm0.135×0.135 mm [188PPI]
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    108×64.8 mm111.1×67.9 mm120.7×75.8 mm3.10 (Max.) mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle15:9Landscape type-
    Other Spec :MassPanel CoverSurface Treatment
    TBD-Antiglare, Hard coating (3H)

    3. TIANMA TM050RDH03-00 Optical Features

    Basic Information :LuminanceWork ModeContrast Ratio
    250cd/m² (Typ.)TN, Normally White, Transmissive600:1 (Typ.) (Transmissive)
    Good View atViewing AngleResponse Time
    12 o'clock70/70/50/70 (Typ.)(CR≥10)20 (Typ.)(Tr+Td) (ms)
    Dispaly Color :Color Temperature:Support ColorColor Coordinate
    6638K16.7M (8-bit)X:0.310; Y:0.330
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    49%69%52%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    51%37%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Uniformity :1.25/1.33 (Typ./Max.)(9 points)

    4. TIANMA TM050RDH03-00 Interface Features

    Signal Electrical :Input VoltageInput CurrentPower Consumption
    3.3V (Typ.)-447.1mW (Typ.)
    Voltage for Display Signals :0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
    Interface Features :Signal TypePhysical TypeInterface Position
    Parallel RGB (1 ch, 8-bit)FPC-
    Interface Detail :Brand NameModel NameAmountPinsPin PitchPin Configuration
    1 pcs40 pins0.5 mm

    5. FAQ:


    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.


    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
