1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for
the development of every type and class of LCD, from the design
stage right through to the production phase, while guaranteeing the
highest quality standards.
Our products can be customized for various applications and market
sectors, including (but not limited to): automotive, medical,
building automation, white goods, digital signage, security,
transportation and industrial.

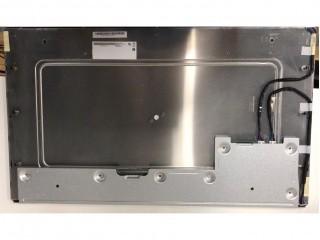

2. AUO G270HAN01.0 Optical Features:
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|
| 900 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(Tr+Td) |
| Best View on | Display Mode | Contrast Ratio |
| Symmetry | AHVA, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
|---|
| 6485K | 1.07B (10-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 89% | 100% | 84% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 91% | 66% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation | 1.18/1.25 (Typ./Max.)(9 points) |
|---|
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
|---|
| - | Sunlight Readable | - |
3. AUO G270HAN01.0 Mechanical Features:
| Panel Size : | 27.0" |
|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
|---|
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.3114×0.3114 [81PPI] | 0.1038×0.3114 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
|---|
| 597.888(H) × 336.312(V) | 602(H) × 340.4(V) | 630(H) × 368.2(V) | 23.4 (Max.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
|---|
| Flat Rectangle | Landscape type | 16:9 (H:V) | - |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
|---|
| Other Detail | Weight | Panel Cover | Treatment |
|---|
| 3.40Kgs (Typ.) | - | Antiglare |
4.AUO G270HAN01.0 Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|
| WLED | Edge light type (Top and Bottom) | - | 10 strings × 2CN | 50K(Min.) | - |
| WLED Electrical : | Voltage Supply | Current Supply | Power |
|---|
| 27/30.6V (Typ./Max.) | 65mA (Typ.) | 35.1/39.78W (Typ./Max.) |
| Interface Features : | Position | Backlight Driver | Type |
|---|
| - | With LED Driver | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
|---|
| JST | S14B-PH-SM6-K-TB | 2.0 mm | 14 pins | 1 pcs | |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption |
|---|
| 24.0±1.2V | 1.72/1.95A (Typ./Max.) |
5.FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
