1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for
the development of every type and class of LCD, from the design
stage right through to the production phase, while guaranteeing the
highest quality standards.
Our products can be customized for various applications and market
sectors, including (but not limited to): automotive, medical,
building automation, white goods, digital signage, security,
transportation and industrial.

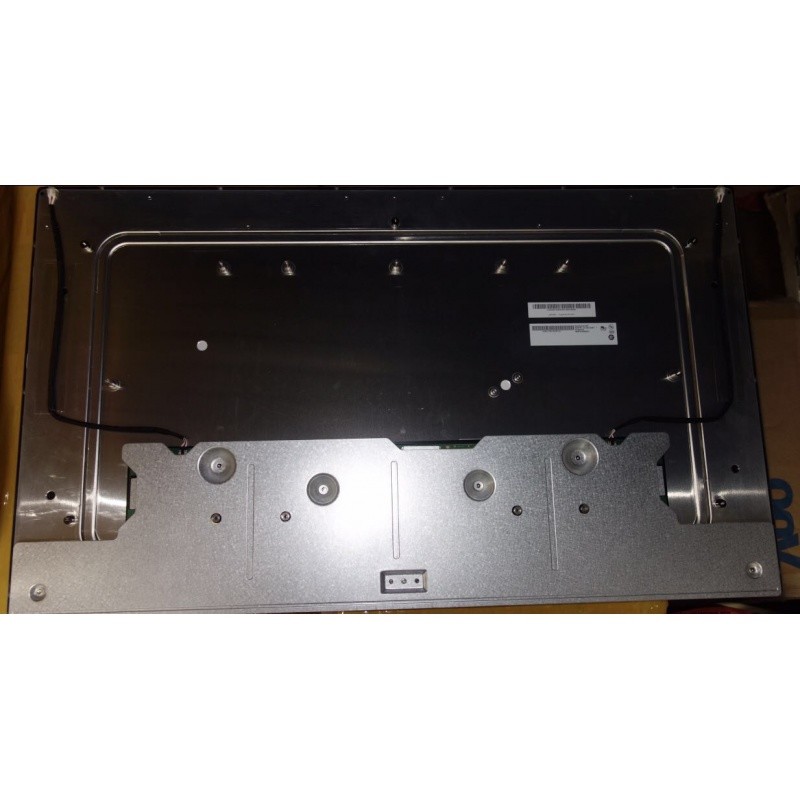

2. AUO G320ZAN01.0 Mechanical Features:
| Panel Size : | 32.0 inch |
|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
|---|
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.0615×0.1845 mm | 0.1845×0.1845 mm [137PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
|---|
| 708.48×398.52 mm | 714.48×404.52 mm | 727.3×424.5 mm | 20.48±0.5 mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
|---|
| Flat Rectangle | 16:9 (W : H) | Landscape type | - |
| Fixation : | Rear mounting holes |
|---|
| Other Features : | Panel Cover | Weight | Surface |
|---|
| - | 4.63±0.46Kgs | Antiglare |
3. AUO G320ZAN01.0 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|
| 700 cd/m² (Typ.) | AHVA, Normally Black, Transmissive | 1350:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 8/10 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
|---|
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 105% | 100% | 100% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 95% | 79% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.28 (Max.)(9 points) |
|---|
| Performance | 3D Type | Outdoor Visibility | Reflectance |
|---|
| - | Sunlight Readable | - |
4.AUO G320ZAN01.0 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|
| WLED | Edge light type | - | - | 30K(Min.) | - |
| Interface Features : | Position | Type | WLED Driver |
|---|
| - | Connector | With LED Driver |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
|---|
| JST | S14B-PH-SM6-K-TB | 2 pcs | 2.0 mm | 14 pins | |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
|---|
| 4.05/4.59A (Typ./Max.) | 24.0±0.5V |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
