1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for
the development of every type and class of LCD, from the design
stage right through to the production phase, while guaranteeing the
highest quality standards.
Our products can be customized for various applications and market
sectors, including (but not limited to): automotive, medical,
building automation, white goods, digital signage, security,
transportation and industrial.

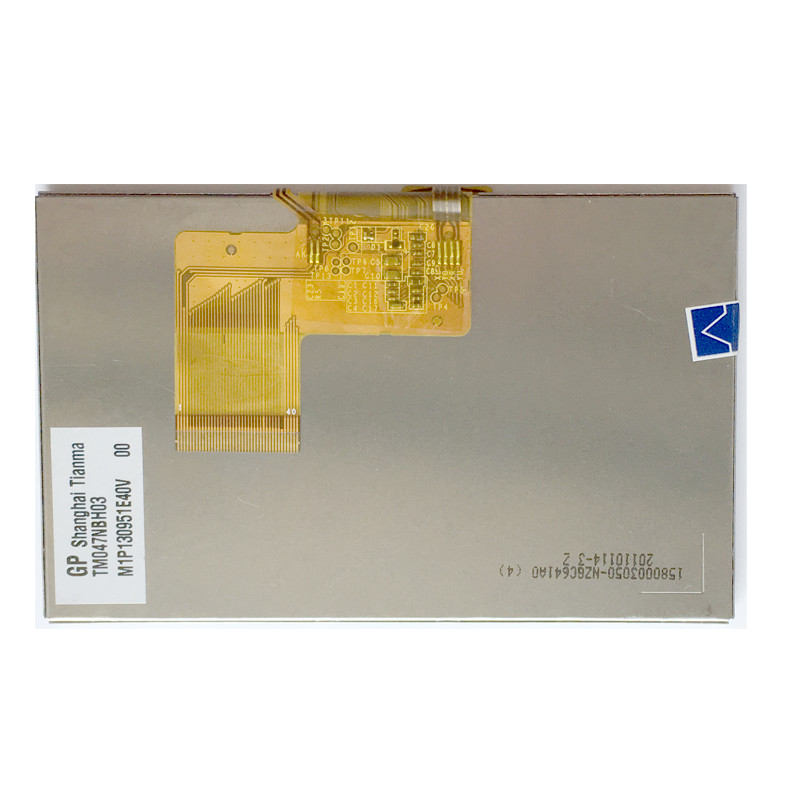

2.TINMA TM047NBH03 Mechanical Details
| Pixel Features : | Pixel Format | 480(RGB)×272 [WQVGA] | Dot Pitch | 0.072×0.216 mm (H×V) |
|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.216×0.216 mm (H×V) [117PPI] |
| Mechanical Size : | Display Area | 103.68×58.752 mm (H×V) | Bezel Area | - |
|---|
| Outline Dim. | 114.3×72.5 mm (H×V) | Outline Depth | 5.0 (Typ.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio | 16:9 (H:V) | Shape Style | - |
| Touch Screen : | Touch Points | 1 point | TP Signal | - |
|---|
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch |
| Other Features : | Weight | 76.5g (Typ.) | Surface | Clear, Hard coating (3H) |
|---|
3.TIANMA TM047NBH03 Optical Details
| Basic Information : | Brightness | 280 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | 12 o'clock | Response Time | 25 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 16.7M (8-bit) |
|---|
| Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
|---|
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM047NBH03 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) | Logic Voltage | -0.3V≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD |
|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - |
|---|
| Consumption | 85/90mW (Typ./Max.) |
| Interface Features : | Type | FPC | Position | - | |
|---|
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
|---|
| | 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C8B-120A |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
